Schwabe 61758 Camping CEE Energy consumption meter ROCO 3 230V/16A IP44 H07BQ-F 3G2,5 2x 1,5m

Schwabe 61758 Camping CEE Energy consumption meter ROCO 3 230V/16A IP44 H07BQ-F 3G2.5 2x 1.5m

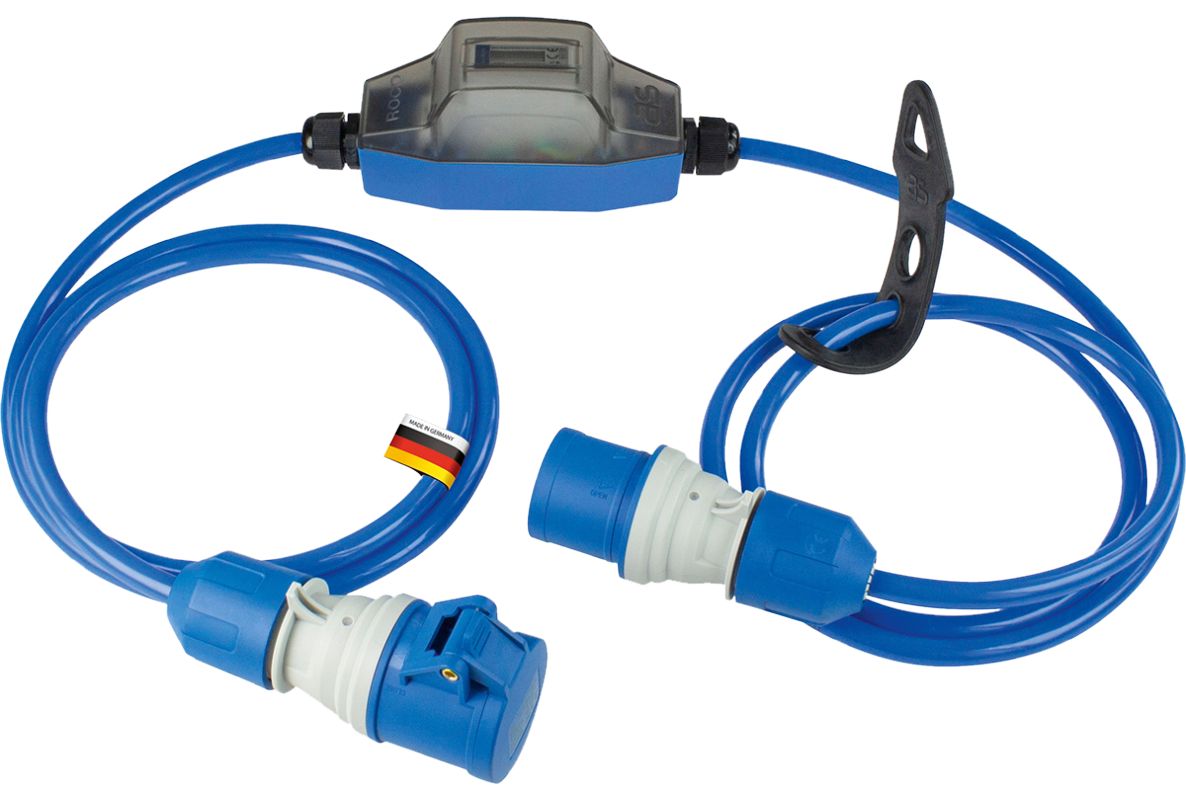

Approved for insurance claims, campsites, construction sites and agricultural activities. Integrated electricity meter in a compact housing made of highly shatterproof special plastic. with viewing window for reading the counter. MID-compliant and suitable for billing purposes. 2 x 1.5 m blue polyurethane cable H07BQ-F 3G2.5 with CEE plug 230 V/16 A, 3-pole. and CEE-contra with hinged cover 230 V, 16 A, 3-pole with "powerlight" voltage display.

Special features.

• Alternating current counter, 1-phase
• Accuracy class: B
• Analog display: 5+1 digits, readable at any time
• Display for up to 99,999.9 kWh
• Counter cannot be reset to 0
• Connection: 230 V, 16 A, max. 3.5 kW, 50 Hz
• Amperage: 0.25 - 5 A (max. 45 A)
• Operating temperature: -25 °C to +55 °C
• SDM: 120 A, 230 V, 50 Hz
• S0: 1000 imp/kWh
• Standards: DIN EN 50525-2, DIN VDE 0620-2-1, IEC 60309, IEC EN 50470-1
• IP44: foreign bodies and splash-proof

Technical data

• Nominal voltage (V): 230V
• IEC Current: 16 A
• Protection class: IP44
• Number of poles CEE: 3
• Color: Blue
