Product description
'
Spectra DG613 Sewer Laser
Features
- The unique feature of the DG613 is its extremely compact design.
- At just 25 centimeters long, it is many centimeters shorter than sewer lasers from competing brands.
- The shortened length makes the impossible possible.
- So now you can get to work even in the narrowest of sewer pipes.
- Another very big advantage to the DG613 is that this sewer laser has the largest automatic leveling range on the market.
- Cross-axis compensation allows for faster and more accurate work because the laser in the tube no longer needs to be level.
- Place the DG613 in the pipe. It then immediately levels itself so that you can get started right away.
- Spectra''s DG613 is designed so that anyone can start using it right away.
- For example, it is equipped with an extra large display that shows all the important info at a glance.
- And not just on the laser itself, but also on the included remote control.
- In fact, the screen of radio remote control RC803 provides exactly the same information as the display of the sewer laser.
- The new DG613 is characterized by a gigantic range. For example, the laser beam can be clearly seen from a distance of up to 150 meters.
- The remote control also has an enormous range. Radiographically, the sewer laser can be operated up to a distance of 130 meters. Via the infrared signal, a distance of 150 meters is even possible.
Technical Data
- Weight 3980 grams
- Aluminum Material
- Diameter ø 135 mm
- Length 250 mm
- Height 130 mm
- Width 110 mm
- Color Yellow
- Protection grade IP68
- Fall resistance 1 meter on concrete
- Tripod connection under ?"
- Remote control yes
- Remote control type RC803
- Laser beam color Red
- Laser class 3A/3R
- Laser beam type Outdoor-visible
- Visible beam range 150 meters
- Accuracy 1.5 mm over 30 m (max, in practice per 100 m)
- Self-levelling horizontal yes
- Self-levelling range Over entire slope range %
- Out-of-range warning Beam and LED flashing
- Operating temperature -20 to 50 °C
- Laser beam color Red
- Laser class 3A/3R
- Retention mode Automatic in %
- Radio range 130 meters
- Infrared range 150 meters
- Power Supply Battery Pack
- Rechargeable yes
- Battery working time 40 hours
- Working time alkaline batteries 50 hours

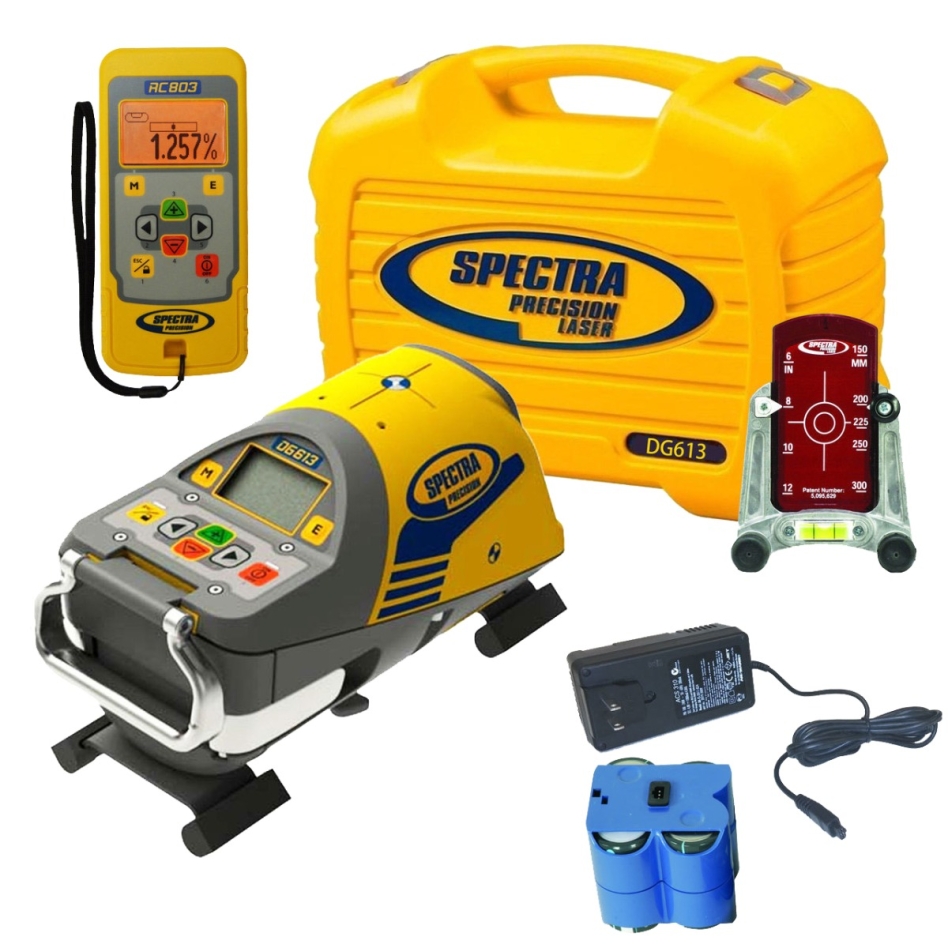

Includes
- RC803 remote control
- 956 optically optimized image aiming point
- 1248 centering plate
- Rechargeable battery pack 10 ah
- World Charger
- Calibration Certificate
- Dutch user manual
- Robust carrying case
More Information
EAN | 0692284012109 |
---|---|
Ordernumber | 127085 |
Manufacturer | Spectra Physics |
Warranty | 1 year |
