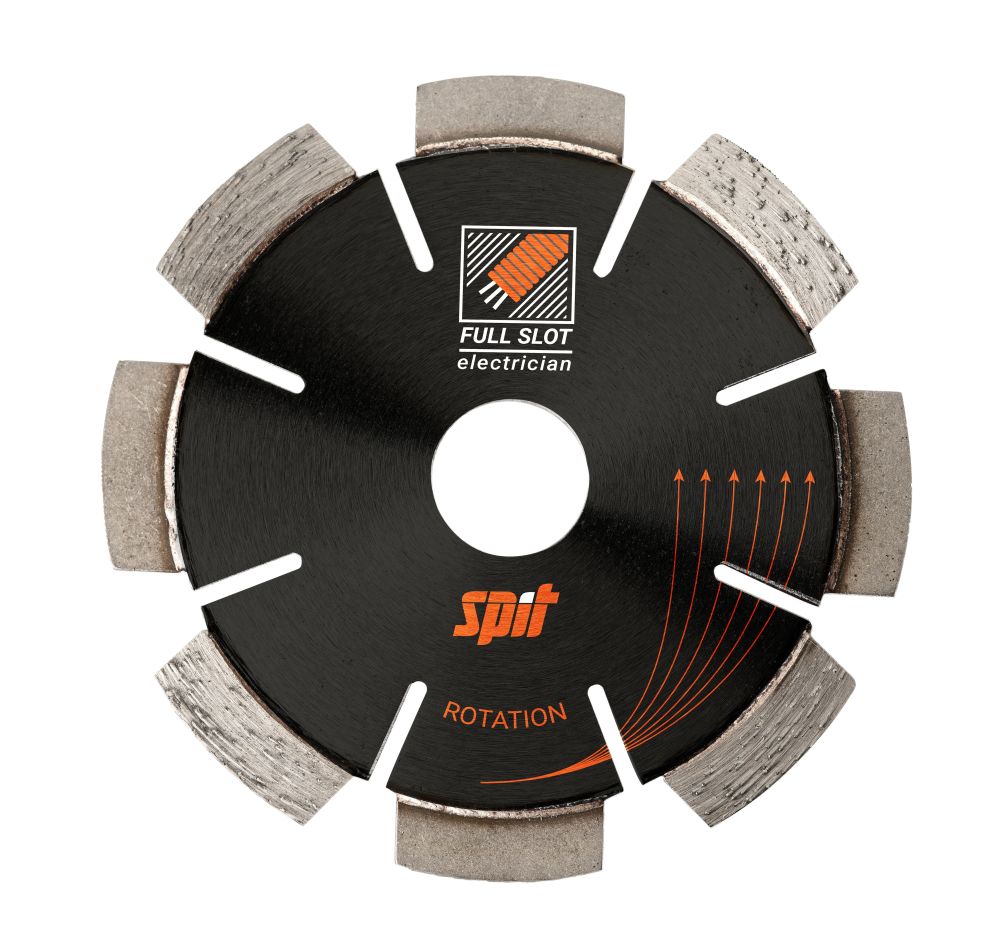

Spit Accessories 610203 D90 Diamond Blade Set, 125 mm, Stone, Full Slot, 3-Piece Set

Spit 610203 D90 Diamond Blade Set, 125 mm, Stone, Full Slot, 3-Piece Set

Special Features

• +40% time savings: there is no need to chisel out the groove—it is created entirely in a single pass during the cutting process.
• Cleanliness: No need to clean the floor; debris and dust are removed immediately when used with the SPIT AC 1630 P, PM, or PH vacuum cleaner.
• Performance: Allows for the direct embedding of 16 mm and 20 mm pipes.
• Compatibility: Works with the SPIT D90 wall cutter and the corresponding Diaquick quick-release system.
• Safety: Saw blade alignment indicators ensure proper installation. Complies with EN 13236 and oSa standards.

Technical Specifications

• Diameter: 125 mm
• Shaft/spindle type: 22.2
• Max. speed: 12,250
• Cutting depth: 37 mm
• Thickness: 3.7 mm
• Appearance: Silver/gray
• Segment width: 29.5
• Segment height: 9
• Number of segments: 10
• Suitable for: Dry use

Scope of delivery

• 3x 125mm diamond cutting disc for stone
