Description

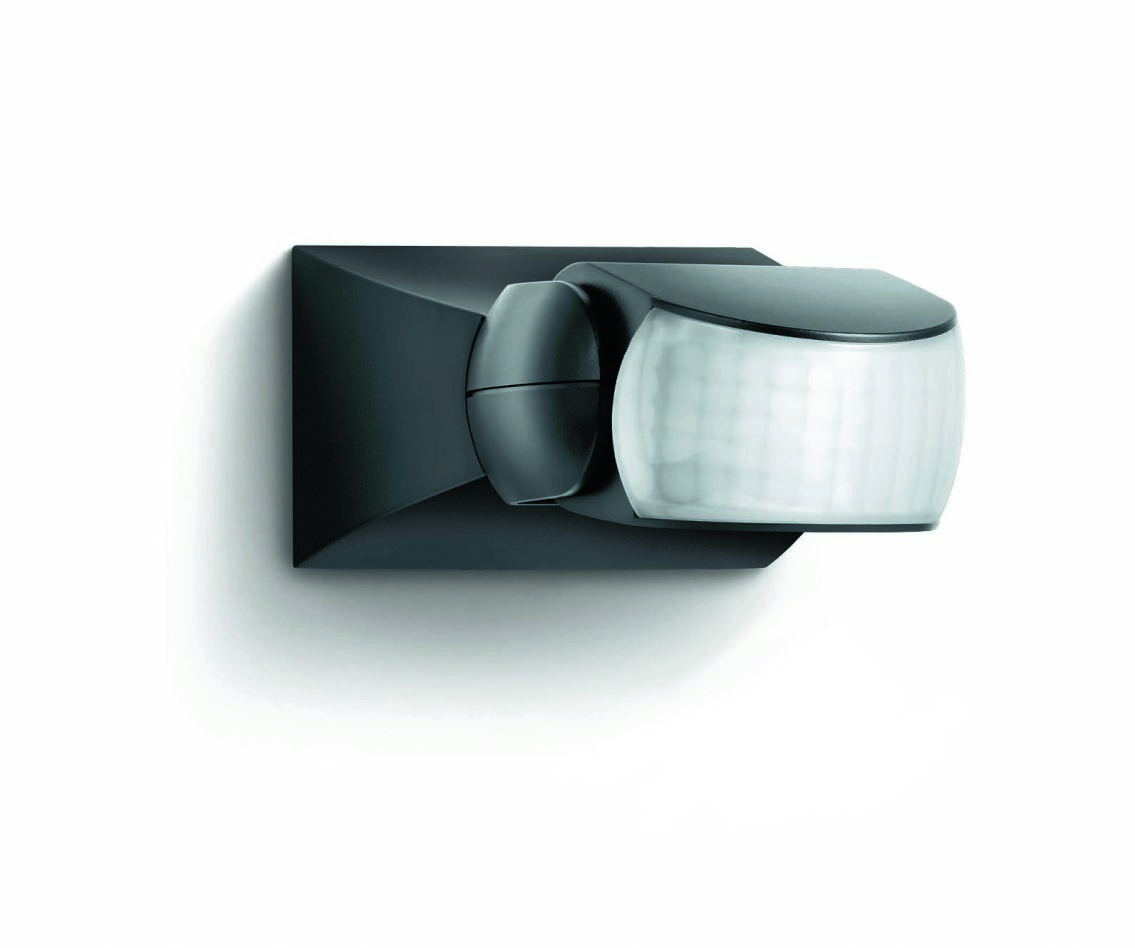

Steinel 600419 Infrared motion detector is 1 black
Bijzondere kenmerken
- Targeted registration and economical price. Infrared motion detector IS 1, for outdoors and indoors, ideal for the targeted monitoring of small areas, 120° angle of detection, range up to 10 m, time and activation level adjustable, sensor horizontally 30° and vertically 180° rotatable for exact adjustment to the detection area.
Technische gegevens
- Transducer type: Passive infrared
- Implementation: motion sensor
- Materiaal: Kunststof
- Kleur: Zwart
- Interface: COM1
- Surface protection: Other
- Breedte: 80 mm
- Hoogte: 120 mm
- Quality Class: Thermoplastic
- Diepte: 120 mm
- Mounting method: Other
- Transparent: No
- Beschermingsgraad (IP): IP54
- With DALI interface: No
- RAL Number (similar): 9005
- Voltage type: AC
- Constant light control: No
- HVAC control: No
- Forced shutdown: Yes
- Suitable for ceiling mounting: yes
- Free animal zone: No
- Connection method: Other
- Undercut protection: No
- Linkable to network: Yes
- Optimal mounting height: 2 m
- Stairwell monitoring: No
- Override switch: Yes
- Max. range sideways: 10 m
- Max. range frontal: 10 m
- Diameter range on floor: 6 m
- Suitable for wireless: No
- Remote operation: no
- Implementation surface:
- Met afstandsbediening: Nee
- Call sensitivity adjustable: No
- Call brightness adjustable: Yes
- With signal unit: No
- Self-learning function for address brightness: No
- Dimming function with dimmer base element: No
- Halogen-free: Yes
- Min. lag time: 8 s
- Max. lag time: 35 min
- Turn-off delay: 480 s
- Impact resistance:
- Angle range horizontal: 120 °
- Sensor swivel range, horizontal: 60 °
- Sensor swivel range, vertical: 180 °
- Address brightness: 2 / 2000 lx
- Max. switching power: 500 W
- C-load: Yes
- Temperature: -20 / 50 °C
- Number of switching zones: 260
- Max. inrush current: 120 A
- Input for auxiliary unit: Yes
- Frequency: 50 Hz
- With alarm function: No
- Antibacterial treatment: No
- Forced engagement: no
More Information
| EAN | 4007841600419 |
|---|---|
| Order Number | 600419 |
| Manufacturer | Steinel |
