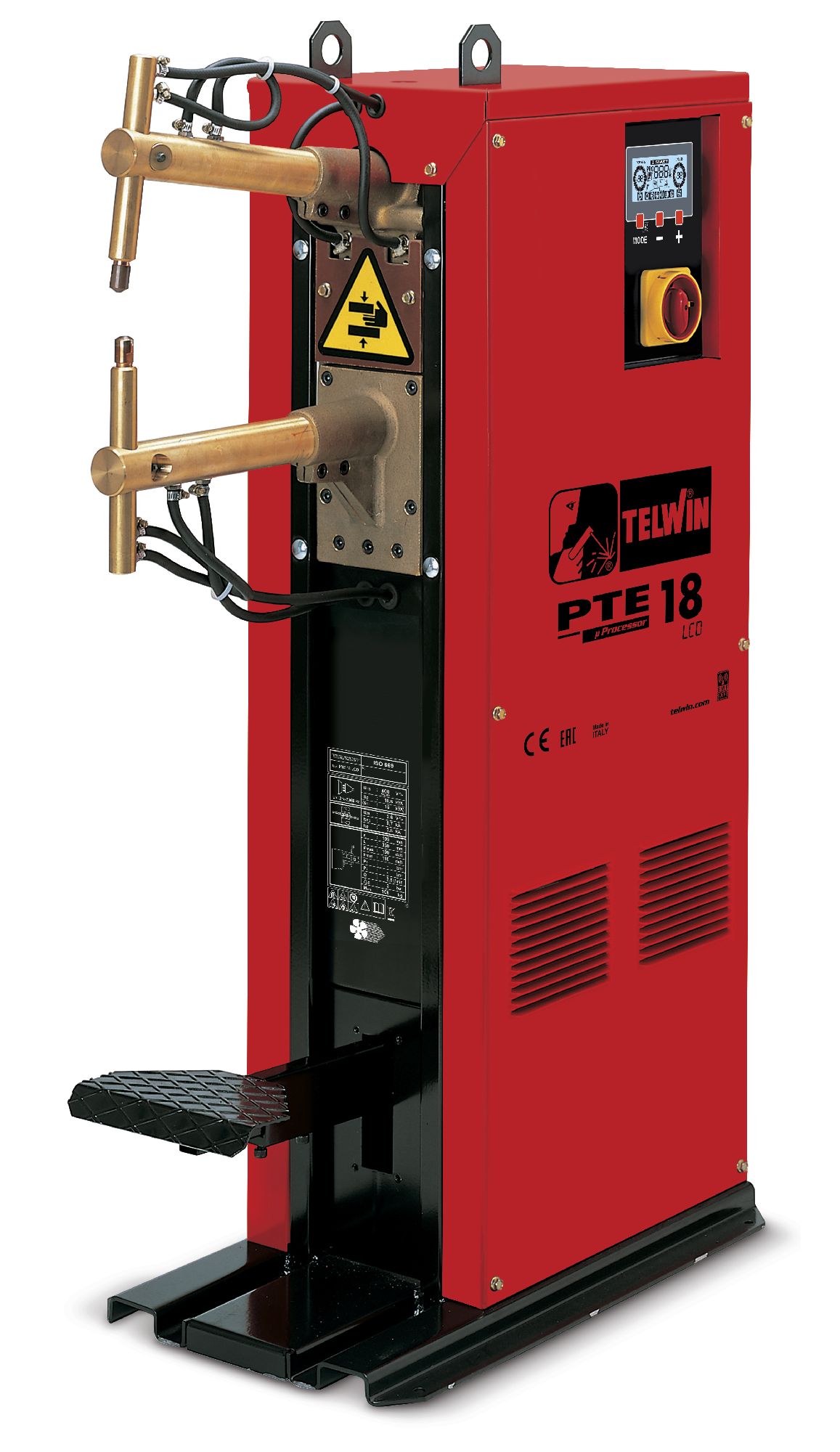

Telwin 830824050 PTE 18 LCD spot Welding machine 400 volts
7436944118182
Articlenr.
830824050
Expected delivery time 3 to 6 working days
- The Trusted Shops Buyer Protection*
- 14 days to withdraw (see conditions)
- Fast and secure online payments
- Directly to:
- Product description
- More Information
- Trusted Shops Reviews
Product description
Telwin 830824050 PTE 18 LCD spot Welding machine 400 volts
Features
- Stationary spot welding machines
- With movable upper arm and built-in synchronous thyristor control
- Suitable for: Optimal results with different types of steel
- Features: Control of spot welding current, spot welding time and of electrode pressure
- With pedal with adjustable spring
- Water cooling recommended with optional group or by connection to fixed line
- Multifunctioneel, groot LCD display
Specifications
- Spanning V 1x400
- Power consumption 60%/max kW 15.4
- Krachtfactor cos fi 0,7
- Beschermingsklasse IP 20
- Maximum spot welding current A 9700
- Maximum puntlasdikte mm mm 3,0 3,0
- Secondary open-circuit voltage V 2,6
- Suitable for steel
- Suitable for stainless steel
- Suitable for alu
- Suitable for welding without gas
- Welding type spot welding
- Maximum operating time (EN60974-1, at 40°) 5
- Weight kg 115,00
- Dimensions (l x w x h) mm 790x320x1.280
Delivery time /- 4 weeks after order
More Information
| EAN | 7436944118182 |
|---|---|
| Ordernumber | 830824050 |
| Manufacturer | Telwin |
| Voltage | 400 V |
| Warranty | 1 year |
