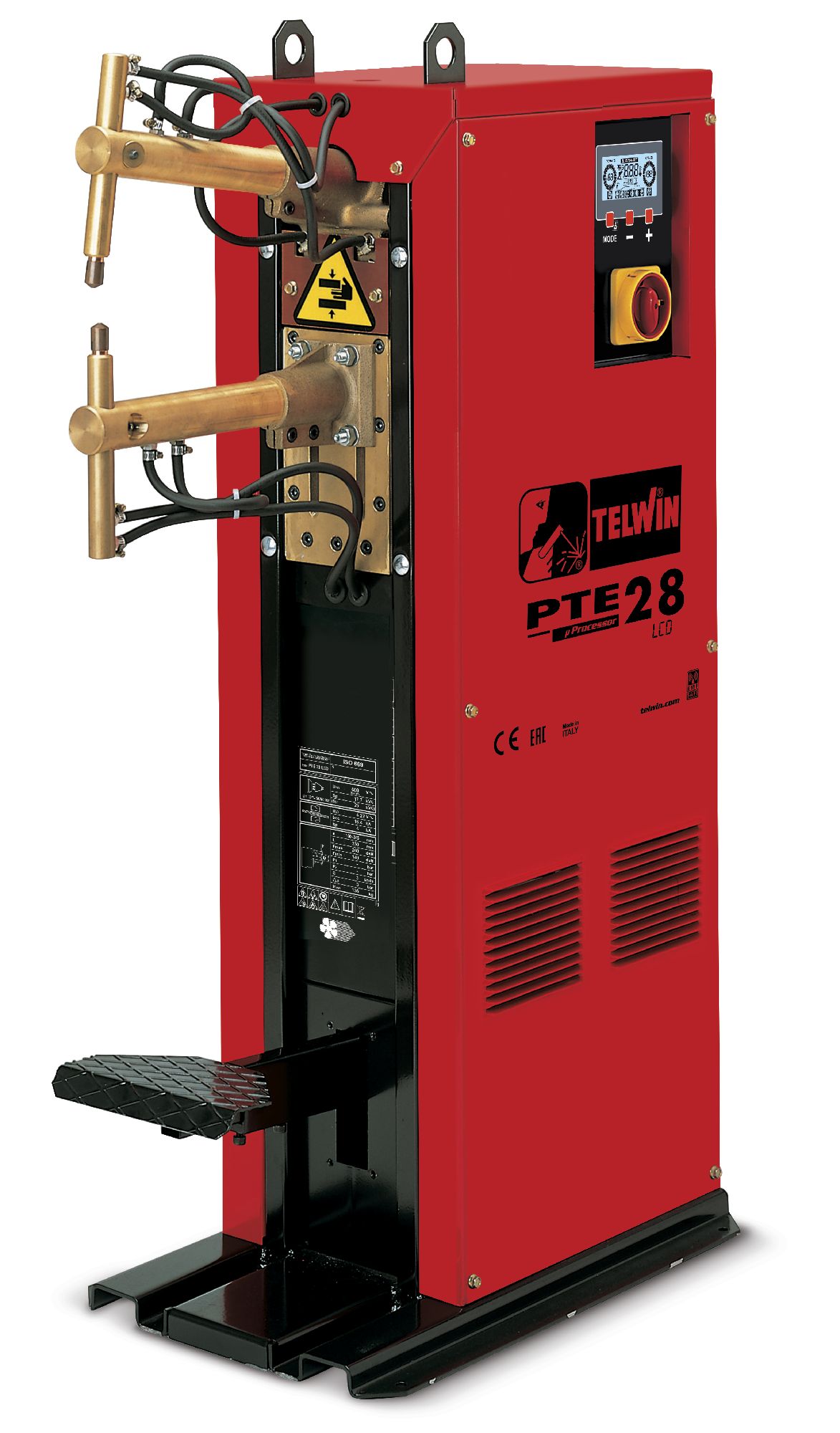

Telwin 830824051 PTE 28 LCD spot Welding machine 400 volts

Telwin 830824051 PTE 28 LCD spot Welding machine 400 volts

Features

• With movable upper arm and built-in synchronous thyristor control
• Suitable for: Optimal results with different types of steel
• Main features: Control of spot welding current, spot welding time and of electrode pressure
• With pedal with adjustable spring
• Water cooling recommended with optional group or by connection to fixed line
• With adjustable forearm
• Multifunctioneel, groot LCD display

Specifications

• Spanning V 1x400
• Krachtfactor cos fi 0,7
• Beschermingsklasse IP 20
• Maximum spot welding current A 16400
• Maximum spot weld thickness mm mm 5,0 5,0
• Secondary no-load voltage V 4,2
• Maximum duty cycle (EN60974-1, at 40°) ,5
• Maximum power consumption kW 42
• Insulation class H
• Weight kg 141,00
• Dimensions (l x w x h) mm 790x320x1.280

Delivery time /- 4 weeks after order
