Telwin 830824052 PCP 18 LCD spot Welding machine 400V
7436944118168
Articlenr.
830824052
Expected delivery time 3 to 6 working days
- The Trusted Shops Buyer Protection*
- 14 days to withdraw (see conditions)
- Fast and secure online payments
- Directly to:
- Product description
- More Information
- Trusted Shops Reviews
Product description

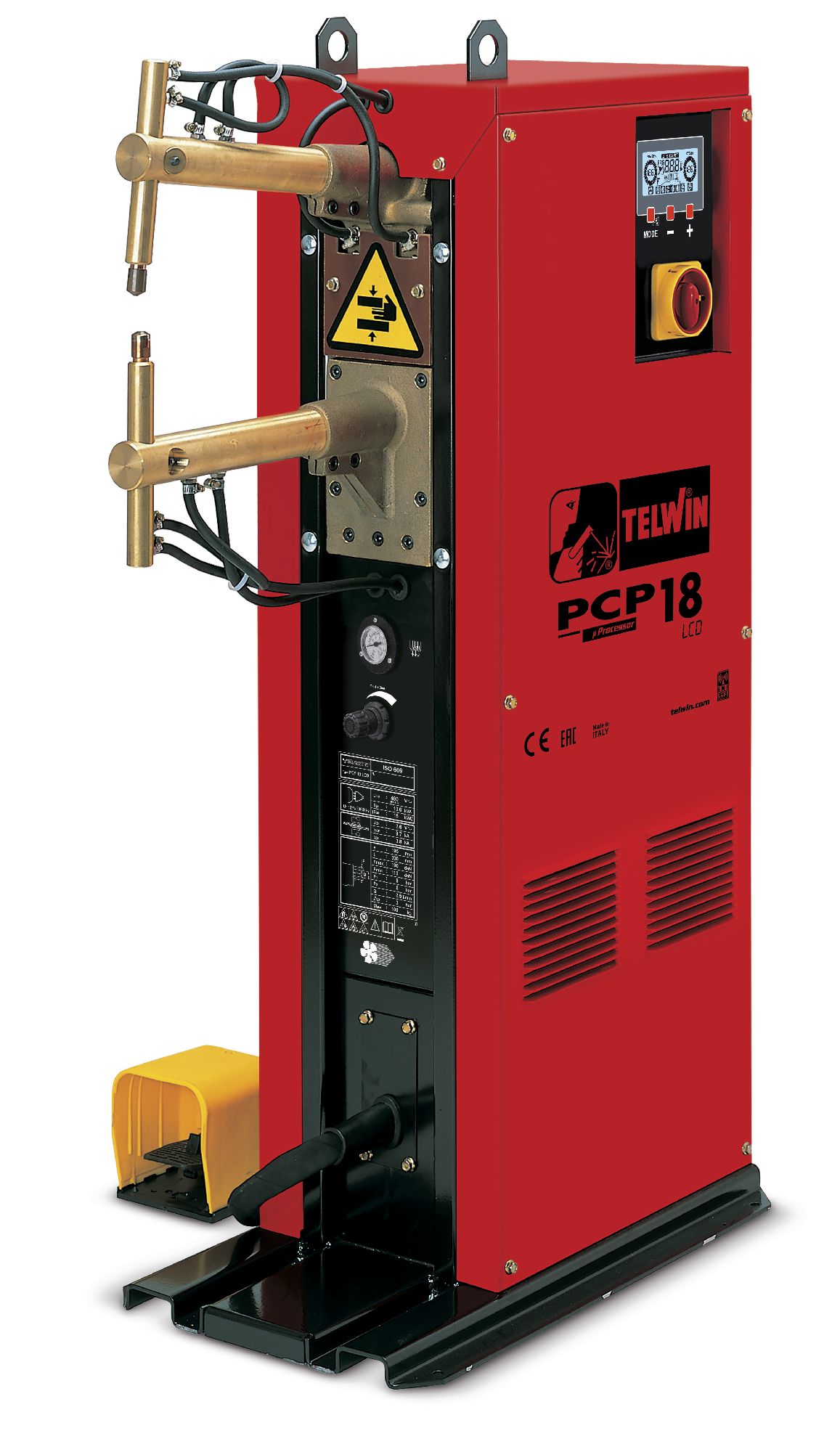

Telwin 830824052 PCP 18 LCD spot Welding machine 400V
Features
- Stationary spot welding machines
- With movable upper arm and built-in synchronous thyristor control
- Control of spot welding current, spot welding time and electrode pressure
- With pedal with adjustable spring
- Water cooling recommended with optional group or by connection to fixed piping
- With adjustable forearm
- Multifunctioneel, groot LCD display
Specifications
- Spanning V 1x400
- Krachtfactor cos fi 0,7
- Beschermingsklasse IP 20
- Maximum spot welding current A 9700
- Maximum puntlasdikte mm mm 3,0 3,0
- Secondary open-circuit voltage V 2,6
- Maximum operating time (EN60974-1, at 40°) 5
- Weight kg 120,00
- Dimensions (l x w x h) mm 790x320x1.280
Delivery time /- 4 weeks after order
More Information
EAN | 7436944118168 |
---|---|
Ordernumber | 830824052 |
Manufacturer | Telwin |
Voltage | 400 V |
Warranty | 1 year |
