Product description

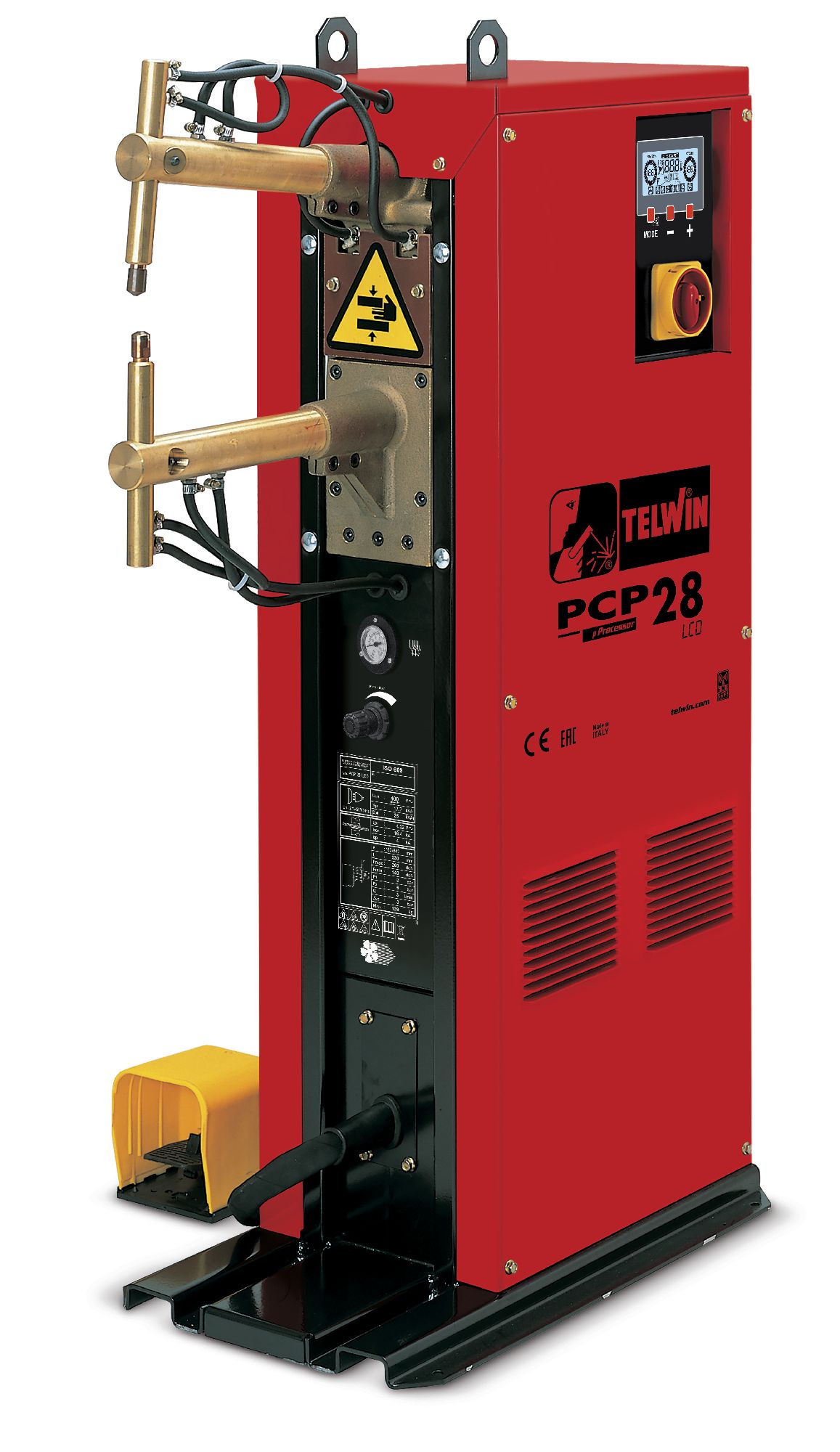

Telwin 830824053 PCP 28 LCD spot welding machine 400 volt
Features
- Stationary spot welding machines with movable upper arm and built-in synchronous thyristor control
- Optimal results with different types of steel
- Control of spot welding current, spot welding time and electrode pressure
- With pneumatic pedal
- Water cooling recommended with optional group or by connection to fixed line
- With adjustable forearm
- Multifunctioneel, groot LCD display
Specifications
- Spanning V 1x400
- Krachtfactor cos fi 0,7
- Beschermingsklasse IP 20
- Maximum spot welding current A 16400
- Maximum spot weld thickness mm mm 5,0 5,0
- Secondary no-load voltage V 4,2
- Maximum duty cycle (EN60974-1, at 40°) ,5
- Maximum power consumption kW 42
- Weight kg 145,00
- Dimensions (l x w x h) mm 790x320x1.280
Delivery time /- 4 weeks after order
More Information
| EAN | 7436944118151 |
|---|---|
| Ordernumber | 830824053 |
| Manufacturer | Telwin |
| Voltage | 400 V |
| Warranty | 1 year |
