Topcon 1021200-72Set RL-H5B + LS-80X Construction Laser Set - Professional Construction Laser

Topcon RL-H5B + LS-80X Construction Laser Set - Professional Construction Laser

Special Features.

• Long range laser with high accuracy With its long range and accuracy, the RL-H5 series is easy to use to check heights.
• User-friendly All you have to do with this electronic self-levelling unit is press the on/off button to get to work within seconds. If the RL-H5B becomes unbalanced while working, it automatically re-levels itself. The self-levelling motors are accurate to within ±20 arc seconds.
• Wide working range Need to shoot up to up to 400 m from the laser? You can do so without any problems. This instrument has the power and range to handle a 400 m diameter work site.
• Long battery life You can operate continuously for 100 hours with 4 (D) cell batteries in the RL-H5B.
• Reliable in all weather conditions The RL-H5B is rugged and suitable for all construction sites and can withstand dust, sudden downpour and even torrential rain.

Strengths

• Large working range (400 m)
• Smart long range receiver
• Protection class IP66 suitable for construction sites
• ±20 arc seconds horizontal accuracy
• Self-levelling capability of ±5 degrees
• Battery life of up to 100 hours

Advantages

• User-friendly: One-button operation, easy to use
• Reliable: Topcon tests each laser for dust, water, drop, vibration and temperature
• Efficient: Large working range prevents frequent repositioning on construction sites
• Long-term use: Robust housing for long-term use

Applications

• Streetwork
• Garden landscaping
• Fencing installations
• Foundations
• Earth moving and levelling

Technical data

• Working range: up to 400 m in diameter
• Accuracy: ±1 mm at 10 m
• Self-leveling: within a range of ±5°
• Rotation speed: 600 rpm
• Battery life: up to 100 hours (4x D-cell batteries)
• Weatherproof: IP66 - dust- and waterproof
• Laser class: Class 2, red (635 nm)
• Operating temperature: -20 °C to +50 °C
• Weight: 2.5 kg
• Warranty: 5 years Topcon manufacturer's warranty

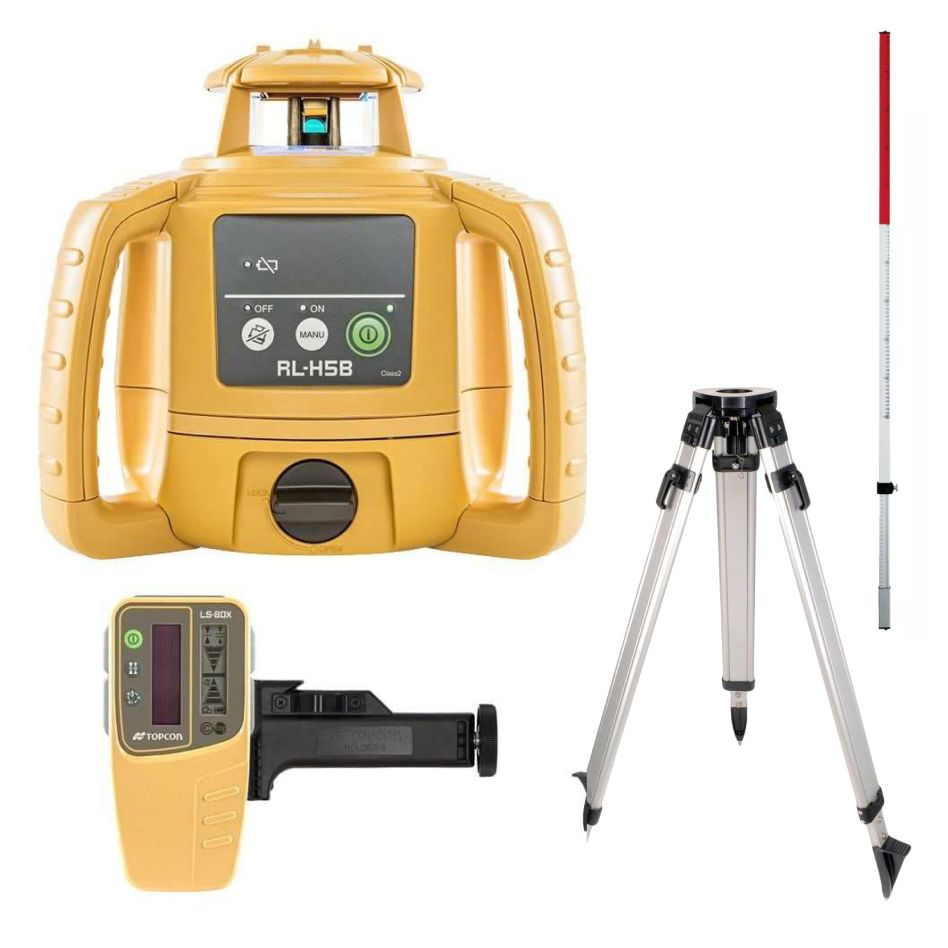

Scope of delivery

• Topcon RL-H5B Building laser
• LS-80X Receiver + staff clamp
• Carrying case
• 4x D-cell batteries
• Tripod 165 cm
• Laser staff
• 5 year warranty
