Topcon 1051612-24 RL-HV2S + LS-100D Multifunction construction laser with dual slope

Topcon RL-HV2S + LS-100D Multifunction construction laser with double slope

Special Features

• The perfect solution for horizontal or vertical applications The perfect solution for horizontal or vertical applications with single and double slope with single and double slope
• Multifunctional applications: Designed for a range of applications. This construction laser can be used for horizontal and vertical laser measurements with single and double slope. Slope up to 5% (+/-15% with tilt plate), on both the X and Y axes. Lay it on its side for plotting and alignment.
• Super-powerful: With a working range of more than 800 meters (diameter), the RL-HV2S can be used for even the largest projects. (Laser class 1)
• Battery: with long working life Contractors looking for a laser with a long-life battery will love the RL-HV2S. A working time of 120 hours with alkaline batteries or 65 hours with the rechargeable Ni-MH battery: this laser continues long after others have already stopped.
• In all weather conditions: The RL-HV2S has an IP66 protection rating, making it usable on any construction site. It withstands dust, sudden rain showers and even torrential downpours.
• Bluetooth laser manager: (App download) The RL-HV2S is compatible with iOS and Android. Adjusting offset, checking calibration? This can be done remotely from a cell phone, all without a specific remote control.
• The LS-100D can be adjusted to suit any application. From extra fine (0.5mm) to medium (2.0mm) and extra coarse (10mm) with additional adjustment options in between.

Strengths

• Dual tilt adjustment in both axes (X/Y) up to ±5%, fully digital and fully automatic
• Accuracy: ~ 0.5 mm per 10 m ; one of the most accurate in its class!
• Working range: up to approx. 800 m diameter with LS-80X or LS-100D receiver
• Can be used horizontally & vertically (with 5/8" tripod connection on the back)
• Rotation speed: adjustable to 300 or 600 rpm
• Robust IP66 enclosure - dust and waterproof, with automatic height monitoring (TILT function)
• Control via Bluetooth with Topcon Laser Manager App for fine adjustments

Advantages

• Large working range (800m)
• Horizontal and vertical applications with double slope
• Up to 120 hours battery life
• High IP66 protection Laser manager app (iOS and Android)

Applications

• Streetwork
• Garden landscaping
• Fencing installations
• Foundations
• Earth moving and levelling
• Construction work

Technical Data

• Accuracy ±0.5 mm/10 m (~10")
• Slope range ±5 % per axis; max ±15 % (digital)
• Working range Up to 800 m diameter
• Leveling range ±5° automatically
• Rotation speed 300 or 600 rpm
• Protection IP66 (dust/water proof)
• Operating time 60 hours (NiMH) or 120 hours (Alkaline)
• Bluetooth control With Topcon Laser Manager App
• Weight Approx. 2.7 kg
• Warranty: 5 years Topcon factory warranty

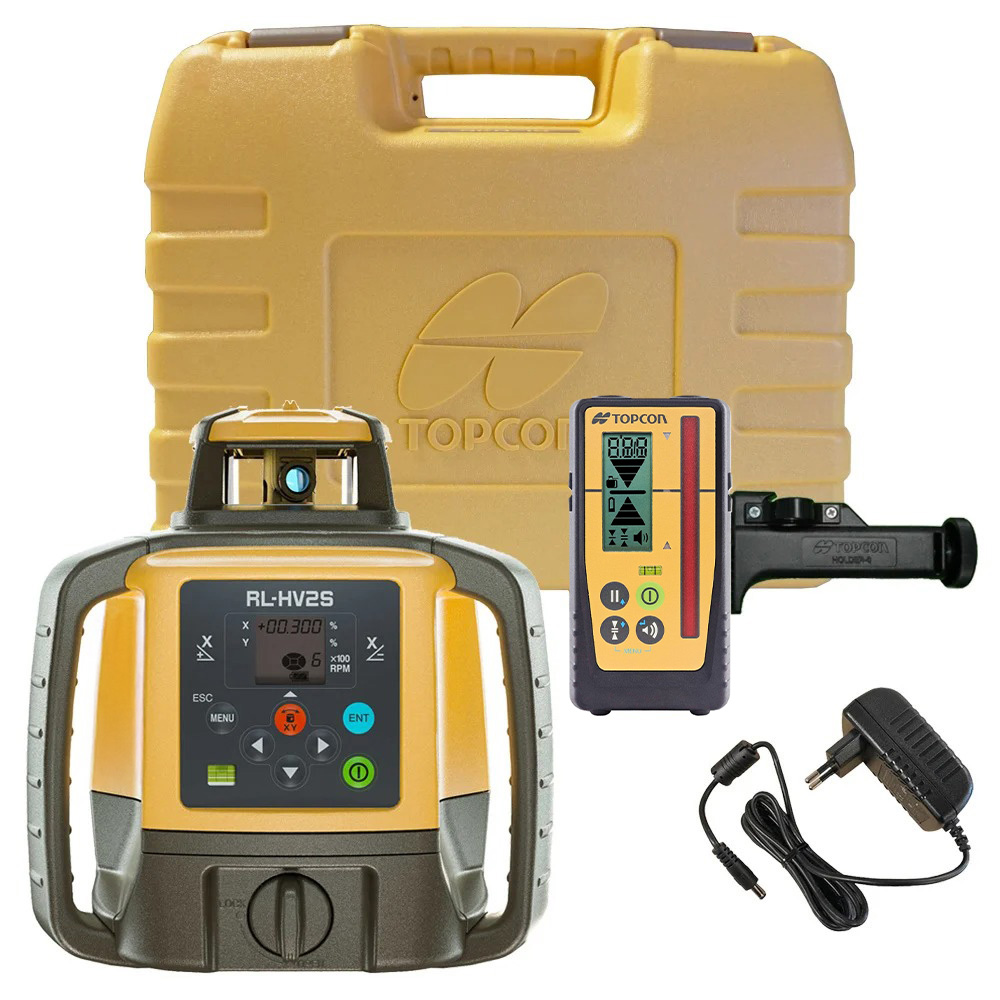

Scope of delivery

• Topcon RL-HV2 laser
• Laser manager app
• LS-100D hand-held receiver included
• Bluetooth
• Hook clamp for hand receiver
• Batteries
• Carrying case
• 5 year warranty
