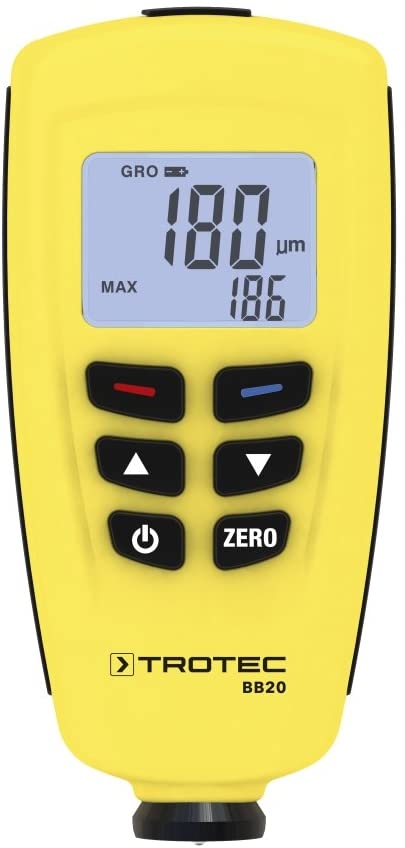

Trotec 3510205075 BB20 layer thickness gauge

Trotec 3510205075 BB20 layer thickness gauge

Description

With its innovative dual sensor, the BB20 makes it possible to measure the thickness of non-magnetic layers such as paint, varnish, plastic coating, electroplating, enameling or chromium plating on iron or steel, as well as on non-ferrous metals such as aluminum, magnesium , titanium etc.

• The measuring head is spring loaded and has a practical V-groove
• In this way, measurements on round bodies such as shafts or hinges are simplified and not affected by vibration.
• The measuring device, which can be used comfortably with just one hand, impresses with a large measuring range from 0 to 1,250 µm and guarantees accurate results in every situation with convenient additional statistical displays and a practical alarm function for over- or under-layer thicknesses freely definable levels.

The professional equipment features make the BB20 an indispensable tool in the automotive sector, for example for paint control measurements or detecting repainted accident damage, as well as for universal inspection of railing and ship paintwork or other protective coatings.

Best for:

• Automotive sector: paint control measurements, detection of repainted accident damage
• Inspection of railing and marine paints and other protective coatings

Benefits in practice

• Dual sensor for measuring the thickness of non-magnetic layers on all magnetic and non-magnetic metals
• Large measuring range from 0 to 1250 µm
• Alarm function for over- or undercutting of freely definable layer thicknesses
• Various statistical functions such as maximum, minimum and average layer thickness
• Two-point calibration for high accuracy
• Memory for up to 400 measurements
• USB interface for PC measurement data transfer
• Easy one-handed operation
• Backlit screen
• automatic switch-off
• Optimal value for money

Technical specifications

Sensor: Ferromagnetic substrates

• Working principle: magnetic induction
• Guaranteed tolerance: (±3% + 1) µm from reading
• Bend radius Minimum: (surface) 1.5 mm
• Smallest measuring surface: Ø 7 mm
• Critical base layer thickness: 0.5 ?m
• Measuring range: 0 to 1250 ?m
• Accuracy: 0.1?m max

Sensor: non-ferrous metal substrates

• Working principle: eddy current
• Guaranteed tolerance: (±3% + 1.5) µm from reading
• Bending radius minimum: (surface) 3 mm
• Smallest measuring surface: Ø 5 mm
• Critical base layer thickness: 0.3 m
• Measuring range: 0 to 1250 ?m
• Accuracy: 0.1?m max
• Functions: maximum value, minimum value, average value and standard deviation, alarm function, display illumination, automatic shutdown, memory for up to 400 measured values
• Dimensions H x W x D / weight: 110 x 54 x 24 mm / 100 g (incl.
• Battery)

Scope of delivery

• Device
• Calibration accessories
• Battery
• Manual
