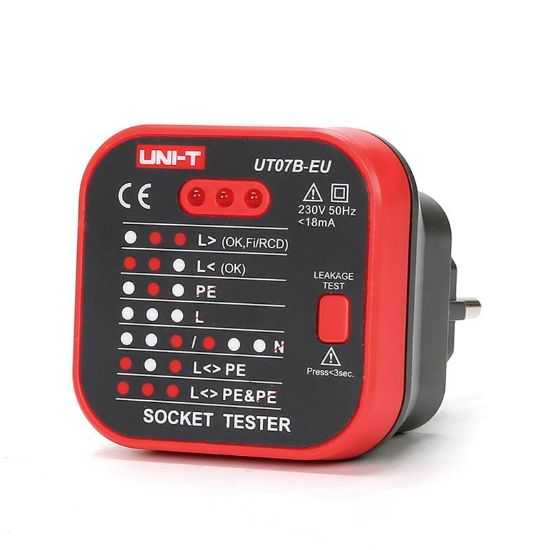

UNI-T UT07B-EU Wall socket tester with RCD test

Uni-Trend UT07B-EU Wall outlet tester with RCD test

UNI-T UT07B-EU Wall socket tester with RCD test.
The UT07B-EU wall socket tester can check socket wiring faults. This instrument is widely used in commercial and residential environments. The UT07B-EU socket tester also includes the leakage test function to verify that ground fault circuit breakers are working correctly.

Special features

• Working voltage: 230V
• Working current:＜18mA
• Frequency: 50Hz~60Hz
• RCD test current: ~30mA - OK, ground fault test passed - OK - Ground fault missing
• Indications: Phase missing - Zero missing - Phase/zero reversed - Phase/zero reversed, grounding missing

Technical data

• Indication/indication: Analog
• Number of measuring ranges: 8
• Testing shutdown time: No
• Internal memory: No
• Printer output: No
• Printer integrated: No
