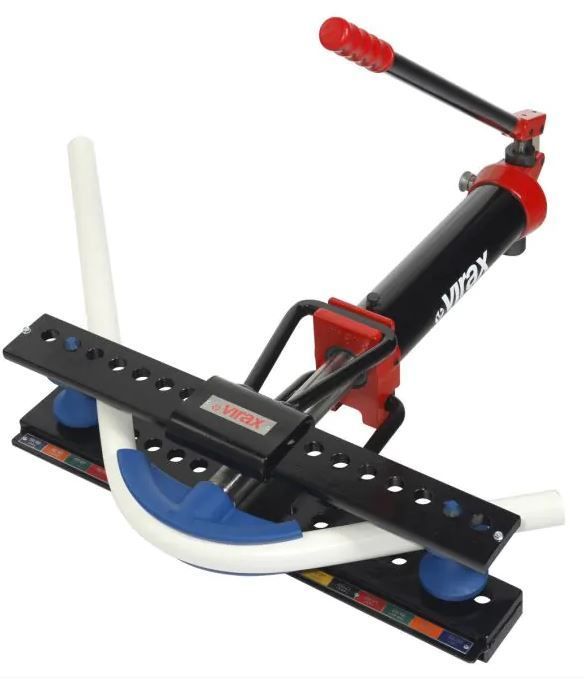

VIRAX 240233 Manual hydraulic bending machine 3/8-1.1/4"'''''''''''''''' GAS""

VIRAX 240233 Manual Hydraulic Bending Machine 3/8-1.1/4"""""""""""""" GAS

Special features

• For gas pipe semi-heavy and heavy duty version
• Manually operated, hydraulic bending device for job sites and prefabrication
• Circuit with single operation and a return function for the piston by means of a spring.
• Supplied in a wooden case with the shapes and accessories
• Tip:
• For proper maintenance use auger oil from Virax
• Take the necessary precautions to prevent foreign particles from entering the reservoir when filling oil into the auger, otherwise there is a risk that the auger will not work (properly)
• Using the bending machine on a horizontal surface

Technical data

• Gas pipes: Ø 3/8" to 4" (nfa 49115-en10255)
• Thin-walled steel pipe: Ø 12 to 45 mm
• Multilayer pipe: Ø 40 to 63 mm
• Bending angle: 0° to 90
• Weight: 44.5 kg
• Bend shapes: 3/8 - 1/2 - 3/4 - 1 - 1.1/4"

Scope of delivery

• Supplied in wooden case
