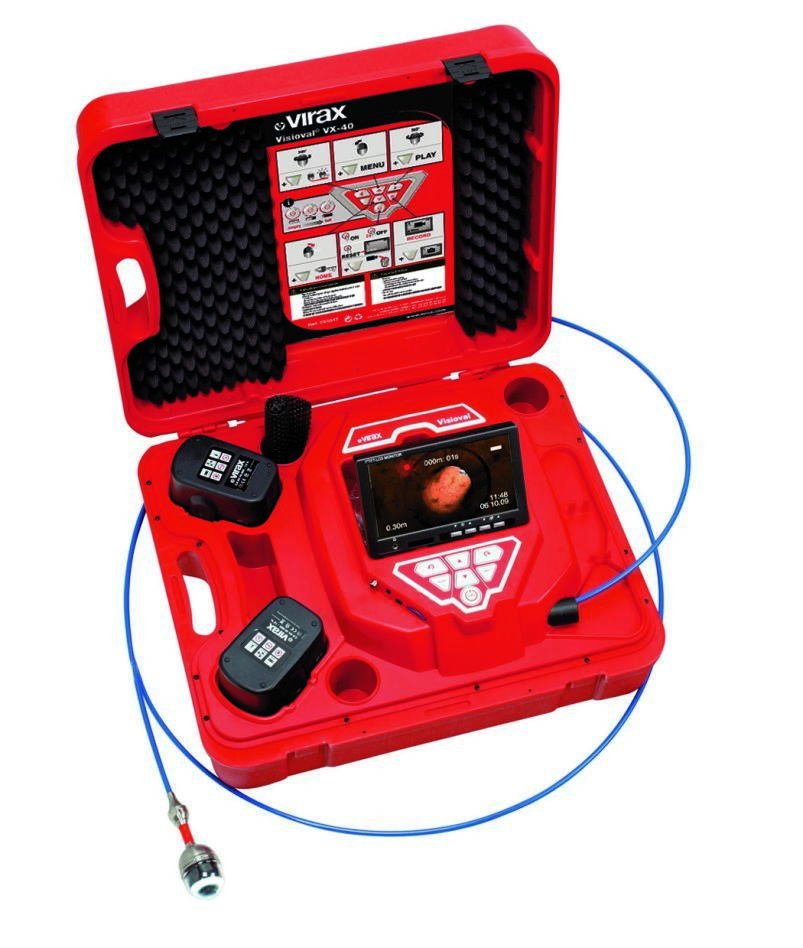

VIRAX 294045 VISIOVAL VX-40 Inspection Camera 40 mm

VIRAX 294045 VISIOVAL VX-40 Inspection Camera 40 mm

Special features

• Portable video inspection system with fully integrated, locatable camera heads in a plastic case with double, reinforced walls. For vertical or horizontal inspection of pipes with an int. diameter of 40 mm, exhausts, ventilation pipes, chimneys, suspended ceilings, industrial installations, various hollow spaces...
• Visioval® VX-26 and VX-40 with non-interchangeable camera heads
• Complete with an integrated 8.9 kHz transmitter for precise location of the head in the pipe (requires tube ref. 294054)
• Digital display (precision 4 cm) and inclination of the head on the screen
• "Home" function to center the camera head straight (only on a head with a Ø of 40 mm)
• Wide field of view of 115° and light sensitivity of 0.5 lux: sharp image in dark places
• 12 LED lights protected from impacts and dirt, with adjustable brightness
• Clear images of excellent quality thanks to 800 x 480 pixel resolution
• Rotatable screen fixed in the case, which can be removed from it for manual operation (2 meter cable)
• Brightness and contrast are adjustable
• Operates on mains or battery power (2 batteries included)
• Autonomy of the battery is indicated on the screen, up to 2 hours per battery
• Indication of battery charge level
• Foto""'""'s en video""'""'s opnemen op een SD-kaart 2 GB (meegeleverd), max. 2 uur video
• Play/Fast forward and rewind/Pause/Delete the photo or video on the Visioval®
• Mini-USB-poort om foto""'""'s of video""'""'s over te zetten op de PC

Technical data

• Head Ø 40 mm waterproof 1 bar/IP67, 360 ° rotatable and pivotable to 180° for inspections of an int. Ø of 50/200 mm
• TFT color screen 7" (18 cm)

Scope of delivery

• - 2 batteries: 12 V, 2.6 Ah Ni-MH
• Power grid block
• Non-slip mat: prevents the bag from sliding on tile floors, for example
• Card SD 2GB
• USB cable
• 5 plexiglass domes
• In suitcase
