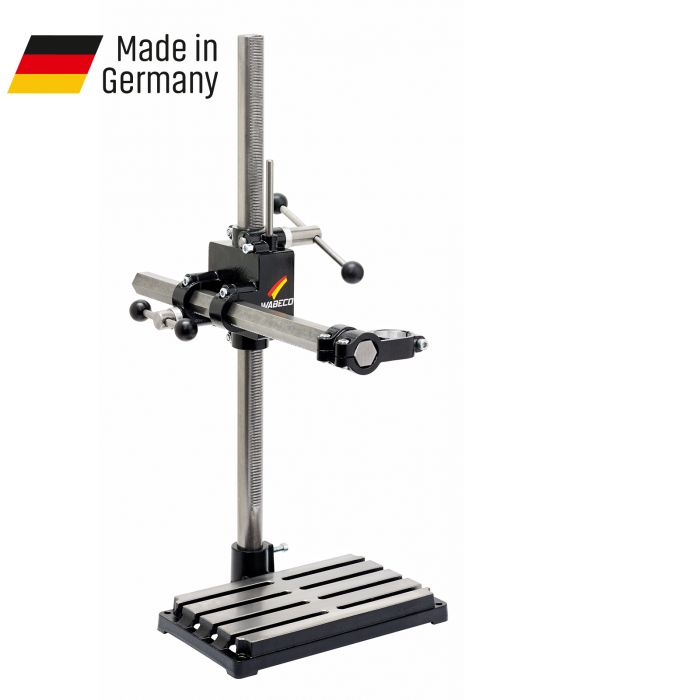

Wabeco 24500 Drill stand BF1243

Wabeco 24500 Drill stand BF1243

Special features

• Unique with 2 input shafts
• For vertical and horizontal drilling and milling
• Z axis - vertical feed axis for drilling operations
• Y axis - horizontal feed axis for milling operations
• The steel column is 360° rotatable in the base plate and can be locked in any position, making it possible to work from all sides and machine larger workpieces
• Flexible and space-saving alternative to bench drills, pillar drills and column drills
• Suitable for drilling, milling, wood turning and turning
• For machining metal, wood and plastic
• Precise drilling and milling
• The workpiece can be accurately positioned under the tool

Technical data

• Working range of Z axis: 500 mm
• Working range Y axis: 325 mm
• Overall height: 750 mm
• Length of arm: 500 mm
• Foot dimensions: 300 x 180 mm
• Number of holes in the base: 4
• Weight: 16.7 kg
• Intake: 43 mm
