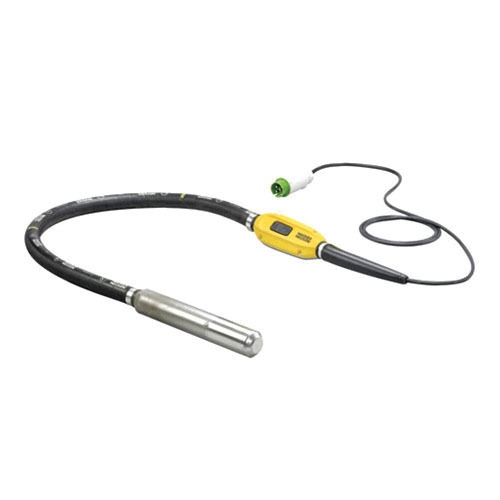

Wacker Neuson 5100049832 IEe45/34/3.0 Accu-Tril needle without drive unit 45mm 3.0m

Wacker-Neuson 5100049832 IEe45/34/3.0 Accu-Trills without drive unit 45mm 3.0m

Special features

• The battery-powered poker vibrator with integrated inverter offers the user maximum flexibility on the construction site during concrete compaction. The user benefits from greater freedom of movement and an unlimited working radius because there is no need to carry a cable or protective hose. This is especially useful when working on formwork and scaffolding. Remote areas are accessible without the need for a power connection. The powerful battery provides enough energy for an entire working day.

Highlights

• High-performance electric motor with stable speeds: Thanks to its consistently high speed, this high-frequency vibrator delivers reliable concrete compaction performance and efficient, high-quality results.
• The motors were developed by Wacker Neuson and are wound and manufactured in-house in Germany. This guarantees consistently high motor performance and high quality.
• Short power cable directly connected to the backpack: The operator benefits from more freedom of movement and an unlimited working radius, as no cable or protective hose needs to be pulled along. This is especially useful when working on formwork and scaffolding. There are no cables to trip over, allowing you to work more safely.
• Independence from external power sources: For large areas, the operator saves time by moving power cables and reconnecting and moving vibrators and frequency converters. Even small remote areas can be reached quickly without the need for power connections.

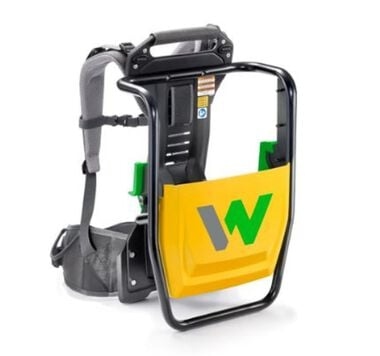

• The ACBe eliminates the need to drag cables through concrete.

Technical Data

• Model variation IEe45/34/3.0
• Range (with) Battery BP1000/1400/500 - 30/42/15 hours
• Rated current 9.9 A
• Rated voltage 34V
• Rated frequency 200 Hz
• Rated power [P] 0.47 kW
• Stage 3
• Head diameter/diagonal 45 mm
• Hose length 3.0 m
• Weight 6.42 kg
• Rubber cap No
• Motor type Asynchronous motor
• Cable length 1.5 m
• Plug type CEE plug 3P 32A
• Protection class III/ Safety extra-low voltage
• Degree of protection IP67

Scope of delivery

• Supplied without drive unit
• Operating instructions
