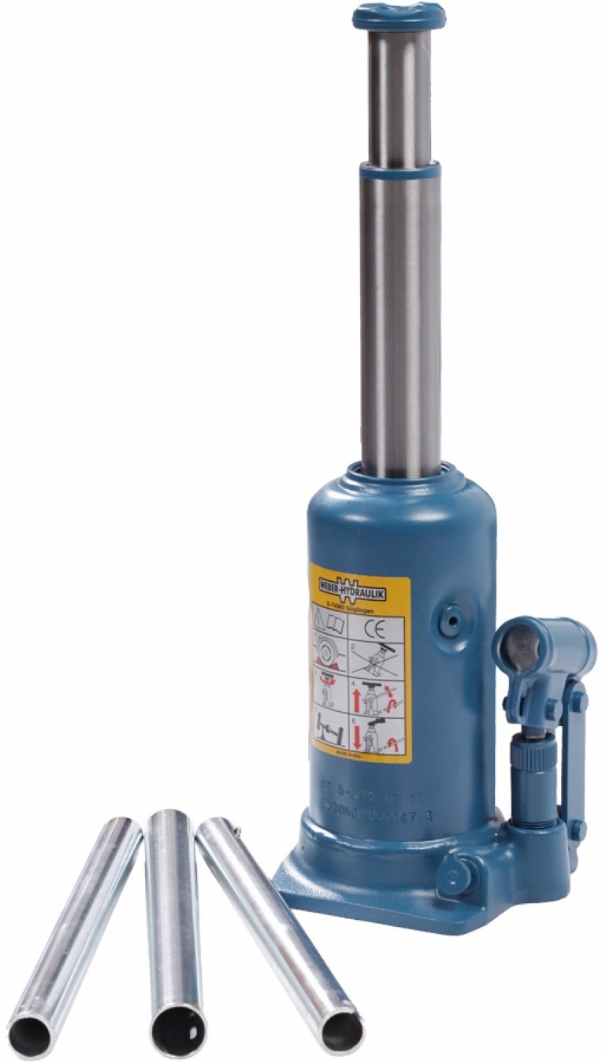

Weber-Hydraulik 2707001 ATDX3-185 hydraulic jack 3000 kg

Weber ATDX3-185 hydraulic jack 3000 kg 2707001

Special data

• Weber hydraulic jacks are robust and can be used between 2000 kg and 100.000 kg
• In accordance with DIN 76024 and VBG 8
• Type AT has 2 pistons so that a greater lifting height is achieved
• Overload protection by means of an overpressure valve
• From a weight of 10 kg, a carrying handle is included
• The spherical foot (*) reduces lateral pressure
• Can be used from -20? to 70?
• Not suitable for long-term loading
• Suitable for horizontal use up to A-30, provided that the pump section is at the bottom
• Standard: EN12100-1/2, EN13157
• DIN76024, VBG8

Specifications

• Type: ATDX3-185*
• Safe working load (kg): 3000
• A (mm): 185
• B (mm): -
• C (mm): 215
• D (mm): 400
• E (mm): R50
• F (mm): 126 x 93
• weight (kg): 4.2
