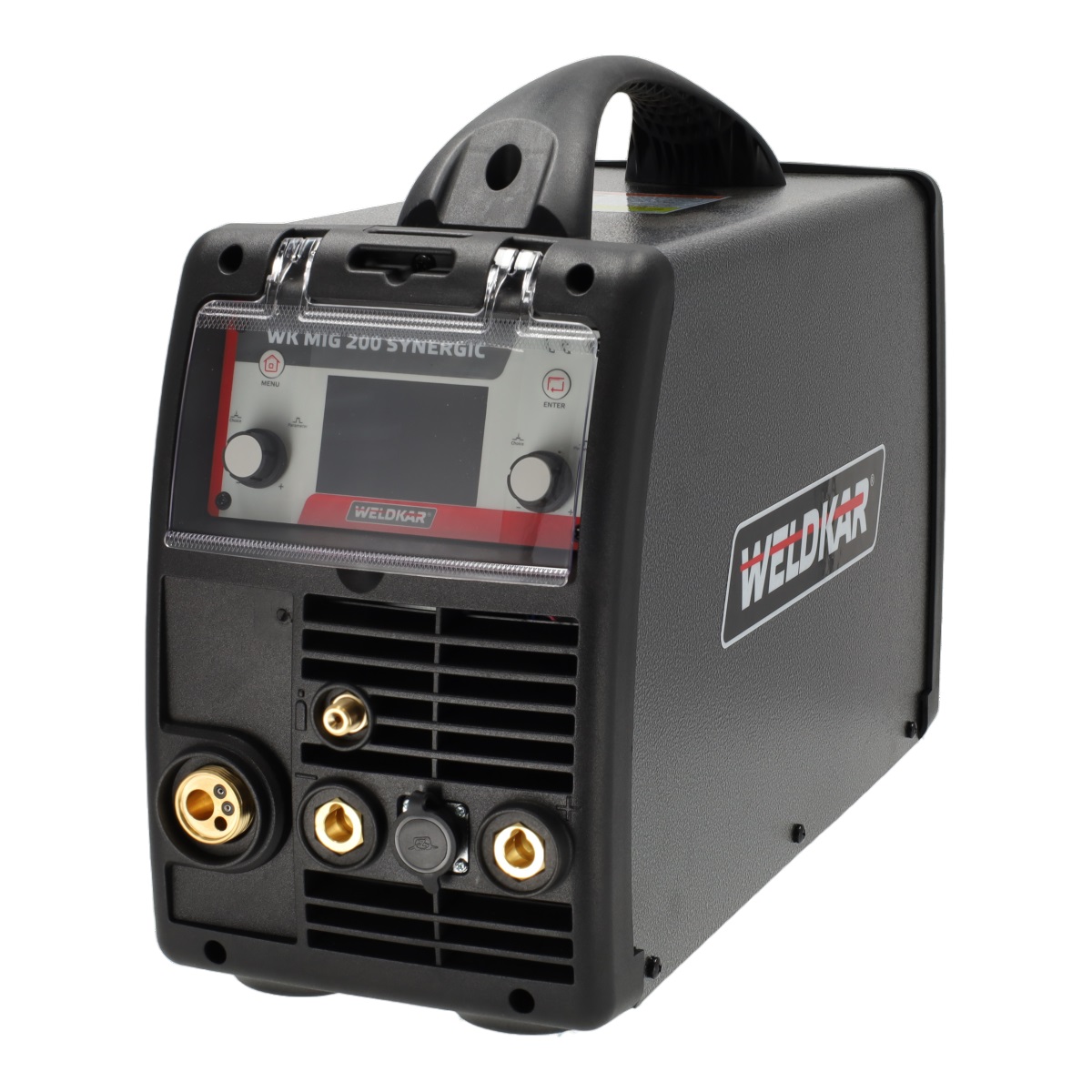

Weldkar 101761002 WK MIG 200 Synergic MIG welding inverter 230V

Weldkar 101761002 WK MIG 200 Synergic MIG welding inverter 230V

Special features

• 230 volt MIG welding inverter
• Combines power, versatility and quality with easy synergic control of welding programs
• Ensures perfect welding results with minimal rework
• Suitable for welding steel, stainless steel, aluminum and CuSi-3
• Equipped with PFC (Power Factor Correction) module for lower power consumption, higher efficiency, more power, higher duty cycle and energy efficient operation
• Equipped with 2-roll wire feed motor and central torch connection

Technical data

• Dimensions (W x D x H): 220 x 525 x 410 mm
• Fuse: 16 A (slow)
• Protection class: IP 21 S
• Wire feeder motor: 2-roll
• European standard: EN 60974.1
• Weight: 17 kg
• Inrush time: 200 A - 40%, 165 A - 60%, 130 A - 100%
• Welding current range min - max: 25 - 200 A
• Max. wire spool diameter: Ø 200 mm / 5 kg
• Mains voltage 1-phase: 230V - 50/60 Hz
• Wire to be welded: Steel 0.6 - 0.8 mm, stainless steel 0.8 - 1.0 mm, CuSi-3 0.8 mm, Fluxcore 0.9 mm, Aluminum 0.8 - 1.0 mm (optional)
• Continuously adjustable voltage: Electronic

Scope of delivery

• WK MIG 200 Synergic PFC
• Drive roller V 0.8/1.0 mm
• Ground cable set 25 mm², 4 meters + ground terminal 300 A
• Gas hose 2 meters
• manual MIG 200
