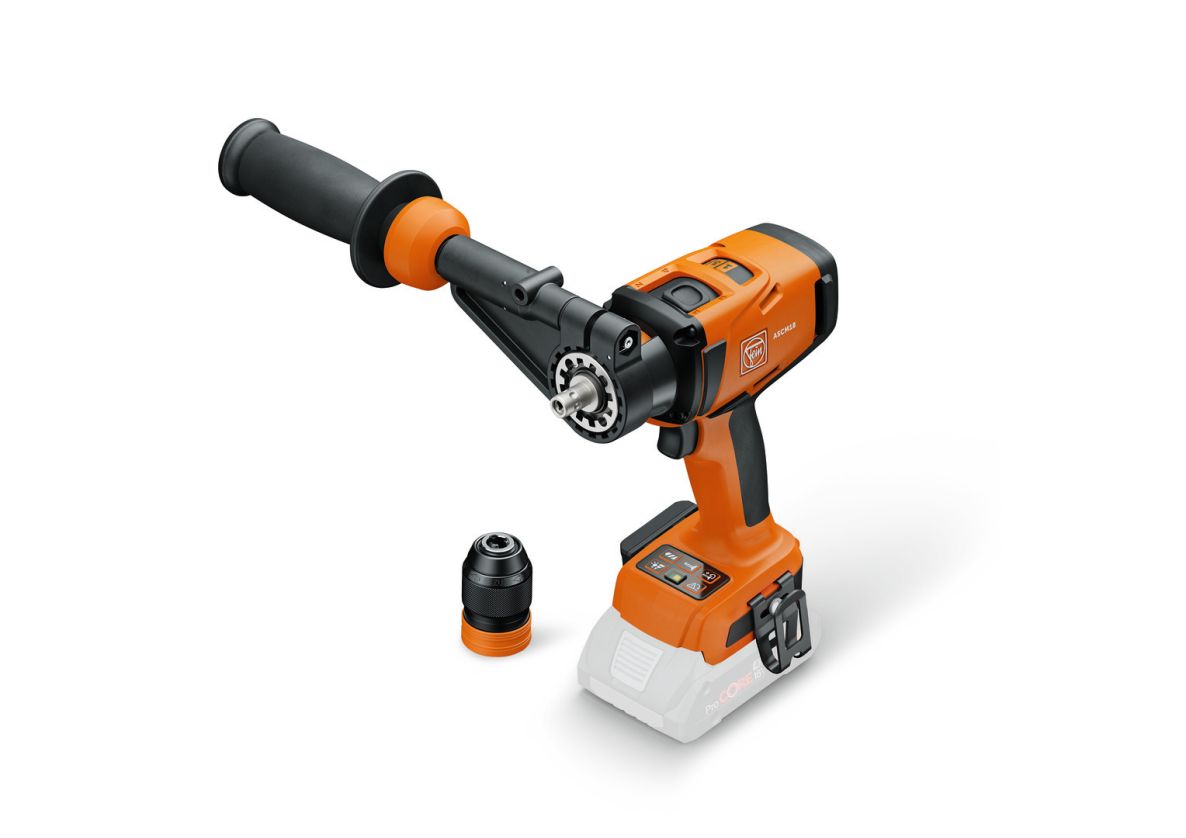

Fein 71161661000 ASCM 18-4 QMP AS 4-speed cordless impact drill excluding battery and charger in L-BOXX case

Fein 71161661000 ASCM 18-4 QMP AS 4-speed cordless hammer drill excluding battery and charger in L-BOXX case

4-speed cordless hammer drill.ASCM 18-4 QMP AS.4-speed cordless drill with brushless motor and QuickIN interface. Uncompromising performance for tapping up to M14 and drilling with HM hole saws up to 80 mm.

Special features

• Solid metal gearbox with 4 gears. With speeds up to 4000 rpm for optimum machining speeds in metal for any bore from 1.5 to 80 mm.
• Maximum application possibilities with the FEIN QuickIN system for multi-purpose use in drilling, core drilling, tapping, countersinking and screwing.
• Very safe working. Kickback monitoring (KickBack) stops the machine.
• Change QuickIN attachments between applications in metal and wood in no time and without tools with only one machine.
• Switchable impact mechanism for drilling in stone and masonry up to 13 mm. More control through extendable auxiliary handle.
• Brushless, powerful FEIN PowerDrive motor with up to 30% higher efficiency enables longer service life.
• High torques of up to 130 Nm.
• Solid metal QuickIN chuck (120 Nm) with carbide-coated chuck jaws and high clamping forces.
• Electronic torque setting (15+1).
• Intuitive control panel with dimmable LED for perfect illumination of the workplace depending on the material.
• Ergonomic and flexible operation due to side-mounted bit and belt holder.
• Screws 10 x 400 mm screws without pre-drilling.
• AMPShare interface enables 1400 screw connections (5 x 40 mm in wood) per battery charge (ProCORE 4 Ah).
• Comprehensive user protection through restart protection, electronic overload protection and brake.
• The innovative trimming function enables screwing into wood at reduced speed for perfect results.
• Compatible with Bosch Professional 18V batteries since 2008 and AMPShare batteries.
• Maximum processing speed with AMPShare 18V ProCORE batteries: COOLPACK 2.0 technology ensures 135 % longer battery life. State-of-the-art cell technology and intelligent battery management provide 87 % more power than conventional batteries. "Electronic Cell Protection" ECP protects the battery against overload, overheating and deep discharge.
• Optimally equipped for every use. Mobile working with the L-BOXX system.

Technical data

• Battery voltage: 18 V
• Battery compatibility: Li-ion/ProCORE Li-ion
• Battery interface: 18 V AMPShare
• Motor: brushless
• Gearbox: 4 gears
• Accessory interface: QuickIN MAX
• No load speed: 430 / 850 / 2 000 / 4 000 min-¹
• Number of strokes: 6 450 / 12 750 / 30 000 / 60 000 min-¹
• Max. torque (hard / soft): 130 (70 / 50) Nm
• Torque modes: 15 + 1
• Chuck clamping range: 1.5 - 13 mm
• Screws: 10 x 400 mm
• Drill Ø steel spiral drill bit: 13 mm
• Drill Ø steel core drill bit: 30 mm
• Drill Ø steel holesaws: 80 mm
• Drill Ø wood: 60 mm
• Drill Ø stone: 13 mm
• Taps: M 14
• Weight without battery: 1,40 kg

Scope of delivery

• 1 QuickIN drill chuck (120 Nm)
• 1 belt clip
• 1 bit deposit
• 1 telescopic handle
• 1 plastic tool case (L-Boxx 136)
