Fein 72705464000 KBU 35 QW Fabricator M12 Tapping Set 3/4 in Weldon Universal magnetic core drill up to 35 mm with user set in case + L-BOXX case

Fein 72705464000 KBU 35 QW Fabricator M12 Tapping Set 3/4 in Weldon Universal magnetic core drill up to 35 mm with user set in case + L-BOXX case

Special features

• Extremely wear-resistant machine concept with swivel bearing motor cable protection for heavy-duty use in industry and construction.
• Perfect combination of weight and power due to compact design with optimized weight and FEIN 1 100 W high-performance motor with tacho electronics for highly stable speed for reliable and cost-effective work.
• Right/left rotation function, electronic speed adjustment and a stroke range of 260 mm allow universal use such as core and spiral drilling, tapping as well as reaming and countersinking.
• Tap quick change chuck: To be used for all core drills with left-hand turning function, making tapping even more precise and efficient.
• Tapping tools and machine taps: From one supplier, in one set for tapping through and blind holes in M8, M10, M12.
• L-BOXX case system: tidy, neat and safe. Thanks to an insert for small parts, all accessories find their place and the L-BOXXes can also be easily connected and stacked.

Technical data

• Nom. power consumption: 1 100 W
• Power consumption: 550 W
• Speed under load: 130 - 520 min-¹
• HM core drill max. Ø: 35 mm
• HSS core drill max. Ø: 35 mm
• Core drilling depth max: 50 mm
• Spiral drill bit max. Ø: 16 mm
• Tapping: M 14
• Countersinking max. Ø: 31 mm
• Reaming max. Ø: 16 mm
• Core drill chuck: 3/4" Weldon
• Change of core drill bits: without tools
• Stroke: 135 mm
• Magnetic holding force: 10 000 N
• Dimensions magnetic base: 175 x 80 mm
• Cable with plug: 4 m
• Weight according to EPTA: 10.60 kg

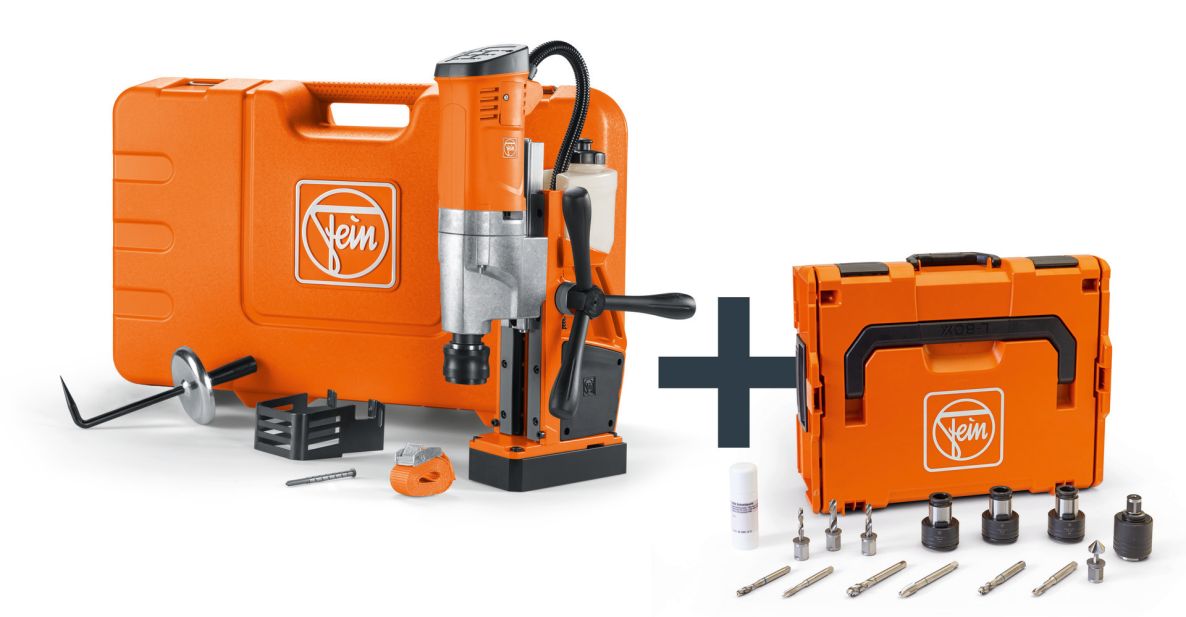

Scope of delivery

• 1 magnetic core drill
• 1 coolant container
• 1 lashing strap
• 1 chip hook
• 1 centering pin 100 mm
• 1 contact protector
• 1 plastic tool case
• 2 centering pins 100 mm
• 1 quick-change chuck size 2
• 1 tapping tool each with safety coupling (M8/M10 [DIN 371], M12 [DIN 374/376])
• One HSS machine tap each for through-holes M8/M10 [DIN 371B], M12 [DIN 376B].
• One HSS machine stud each for blind holes (M8/M10 [DIN 371C], M12 [DIN 376C]).
• One HSS spiral drill bit each with a drilling depth of 35 mm (Ø 6.8/8.5/10.2 mm)
• 1 HSS 90° taper countersink bit Ø 16.5 mm
• 1 cutting paste
• 1 L-BOXX 136 for accessories
