Fein Accessories 90318223000 Magnetic drill stand MBS 16 X (excl. machine)

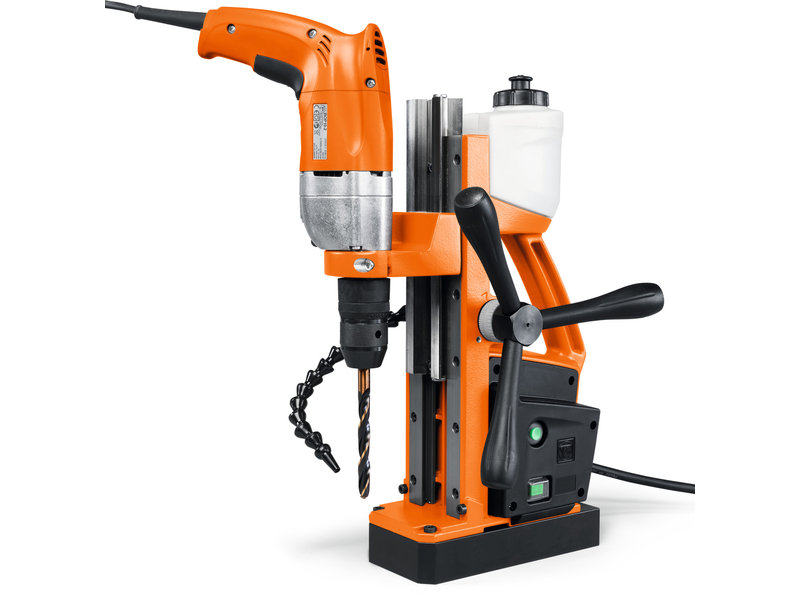

Fein 90318223000 Magnetic drill stand MBS 16 X (excl. machine)

Order your Fein machine now and take advantage of the total 5 year warranty on Fein machines(*)

(*) In addition to the Fein manufacturer''s warranty (3 years after registration with Fein) you will receive an additional 2 years TOOLPLUS warranty from us. ToolNation TOOLPLUS Warranty: 2 years extra Toolplus warranty on power tools, extra security from Toolnation.

Features

• Flexible magnetic drill stand with fine adjustment for rotary drills up to a drill size of 16 mm
• Lightweight, compact magnetic drill stand for universal use such as drilling, thread cutting, reaming and countersinking
• Double drill motor guide for using the largest drilling tools
• High magnetic holding force and safety switch guarantee safe working in any position
• Integrated coolant tank with flexible hose. Supply handwheel that can be changed sides
• Adjustable carriage height without tools

Specifications

• Nom. power consumption 100 W
• Socket max. 16 A
• Cable with plug 4 m
• Weight according to EPTA 9,5 kg
• Spiral drill max. Ø 16 mm
• Taps M 12
• Galvanizing max. Ø 50 mm
• Reaming max. Ø 16 mm
• Magnetic holding force 12 500 N
• Stroke 145 mm
• Up to 325 mm stroke range
• Dimensions magnetic base 195 x 90 mm
• For clamping shaft Ø 43 mm
• 230V X

Includes

• 1 refrigerant tank
• 1 sjorband
• 1 contact protection
