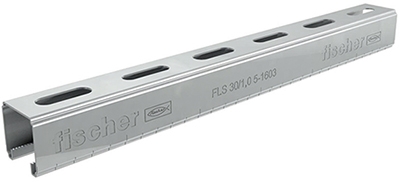

Fischer 538755 Mounting rail FLS 30/1,0 - 2 m 10 pieces

Fischer 538755 Mounting rail FLS 30/1,0 - 2 m 10 pieces

The Fischer Mounting Track FLS is a basic element of the flexible track system. The C-profile in 3 construction heights ensures secure fixing with the preformed serrations and flanged edges of the construction elements of the FLS system. This enables fast and rational attachment of pipe strands and support structures in both horizontal and vertical installations. Alternating slotted holes for optimal fastening as well as a scale on the rails, which supports both shortening and positioning of the connecting elements, provides safety and simplifies assembly. The fire test report according to MLAR/EN1363-1 of the FLS 37 provides additional safety.

Advantages

• Due to the folded edges of the mounting rails, the construction elements always stay perfectly in place and it facilitates safe assembly
• The pre-formed serrations in the mounting rail give the sliding nut a secure hold when accommodating high transverse loads
• The scale on the mounting rails simplifies the shortening and positioning of components during assembly
• The alternating slotted holes in the mounting rail allow optimal attachment to the substrate.

Technical data

• Thickness : 1.0 mm
• Length : 2000 mm
• Weight in kg/m : 0.78 (kg/m)
• Profile cross section : 0.98 (cm²)
• Moment of inertia : 1.02(cm4)
• Moment of inertia : 1.46 (cm4)
• Section modulus : 0.64 (cm³)
• Section modulus : 0.94 (cm³)
• Max. recommended static load at 1m length : - (kN)
• Contents : 10
