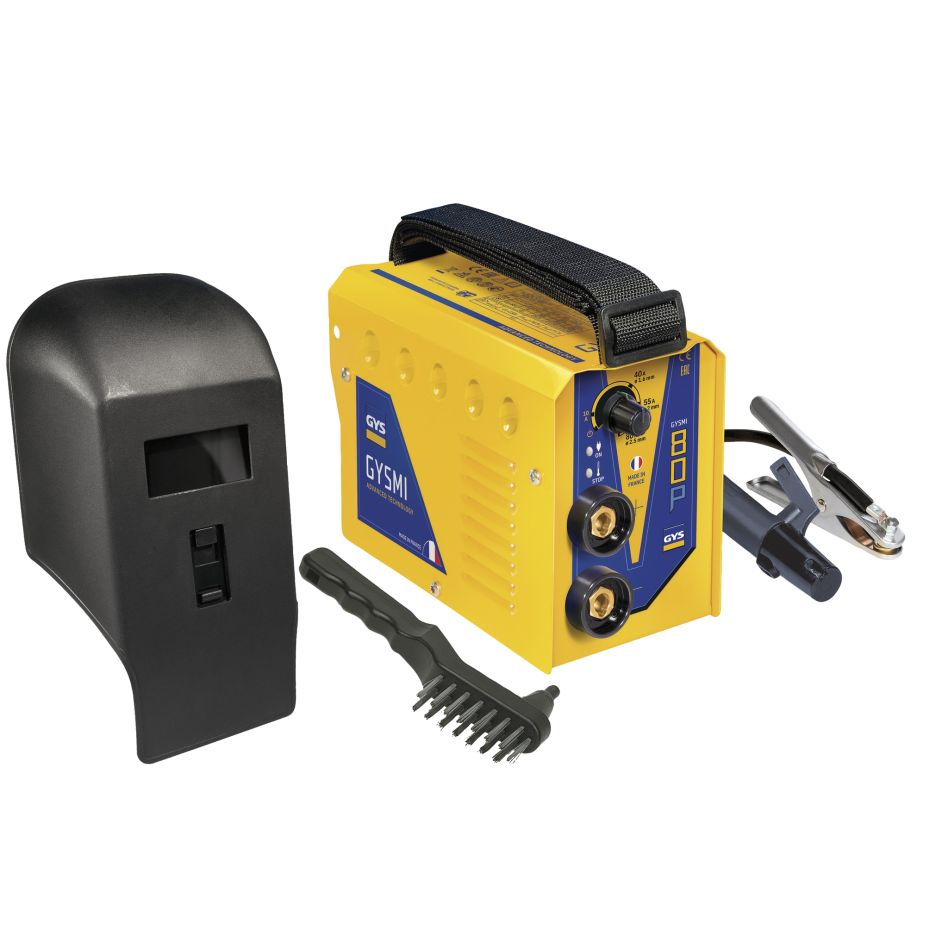

Gys 5192029941 GYSMI 80P Welding inverter set in case complete

GYS 5192029941 GYSMI 80P Welding inverter set in case complete

GYS welding machine GYSMI 80P with inverter technology is controlled by a microprocessor. The dynamic arc of this product is revolutionary and unique on the market. The 80P is suitable for all types of electrodes: rutile, basic, stainless steel, cast iron on direct current. Compact, very convenient thanks to low weight (2.5 kg), small size and low energy consumption.

Special features

• Instant arc ignition thanks to high no-load voltage
• Constant welding power
• Very soft arc due to direct current
• Insensitive to mains voltage variations or length of the welding arc
• Very good penetration and perfect arc stability
• HOT START - start current increase at switch-on.
• ANTI STICKING - prevents sticking and annealing of the electrode.
• ARC FORCE - prompt current increase in difficult welding situations.

Technical Data.

• Type: Inverter
• Model: MMA welder
• Connection voltage: 230 V
• Length: 230 mm
• Width: 140 mm
• Height: 100 mm
• Frequency: 50/60 Hz
• Number of phases: 1
• Weight: 2.5 kg
• Max. amperage: 80 A
• Degree of protection (IP): IP21
• Fuse rating (slow blow): 10 A
• Operating temperature: -10 / 40 °C
• Continuously adjustable: No
• Max. load capacity at 100% (electrode): 80 A
• No-load voltage: 85 V
• Welding current (electrode): 10 / 80 A
• Welding voltage (electrode): 20.4 / 23.2 V
• Suitable for tungsten electrode diameter: 1.6 / 2.5 mm

Scope of delivery

• GYSMI 80P
• Traditional hand welding mask
• Hammer
• Ground cable (1.6m / ø10mm²)
• Power cable (1.6m / 10mm²)
