Makita 7104L Chain Mortiser 230V

Makita 7104L Chain Mortiser 230V

Now a total of 5 years warranty on Makita 7104L Machines

On top of the Makita factory warranty ( 3 years after registration with Makita ) you will receive an additional 2 years TOOLPLUS warranty from us. ToolNation TOOLPLUS Warranty: 2 years extra toolplus warranty on power tools.

Features

• It is ideal for heavy timber constructions such as trusses, chalets and carports
• The integrated clamp ensures stability and is suitable for beams up to 308 mm wide
• The chain can mill mortises up to 155 mm deep quickly and precisely
• And thanks to the diagonally adjustable blade, you can rout 130 mm lengthwise without moving the machine
• If you want to make a new mortise, it is easily movable because of its relative light weight (17 kg)
• The machine comes standard with a 16.5 mm cutter chain
• Powerful and robust, but well portable chain milling machine for quickly milling mortises to a depth of more than 15 cm in all possible types of wood
• Ideal for rustic mortise and tenon joints in heavy timber sections such as for the construction of carports, chalets, traditional roof trusses etc
• Tiltable sword allows one to six overlapping plunge cuts without shifting the machine, for holes from 17x54mm to 30x130mm
• Sophisticated system with multiple stops and selector levers for fast and precise sequencing of different dive movements
• Depth stop adjustable to 1.5 mm for routing blind holes
• Integrated beam clamp with clamping lever allows the machine to be clamped quickly and reliably on beams up to 30 cm wide
• Very accessible and simple mechanism for smooth adjustment of chain tension

Specifications

• Nominal power consumption (P1):1140 Watt
• No load speed max.: 3200 rpm
• Chain speed no load: 50 m/sec
• Maximum immersion depth: 155 mm
• Hole width: 17-30 mm
• Hole length: 54-130 mm
• Dimensions (L x W x H): 512 x 298 x 513 mm
• Weight without cable (EPTA 01/2003): 17.3 kg

Includes

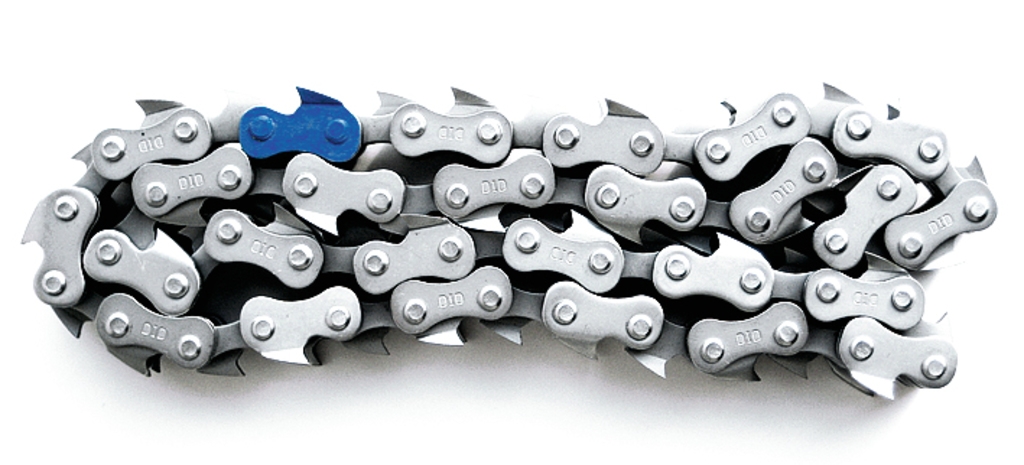

• A-16570 chain for chain mortiser
• 133571-3 blade for chain mortiser
• 221501-7 chain sprocket for chain cutter
• 781204-0 socket wrench 13-17mm
