Makita DCC500ZJX6 18 V Diamond cutter dry 125 mm excl. battery and charger

Makita DCC500ZJX6 18 V Diamond cutter dry 125 mm excl. battery and charger

Special features

• Diamond cutter for dry and wet use.
• Maximum grinding depth is 40 mm.
• Equipped with 360° swivel dust extraction connection.
• Diamond cutter for dry and wet use.
Maximum grinding depth is 40 mm.
• Equipped with 360° swivel dust extraction connection.
• Fits the Makita guide rail thanks to optional adapter(198673-2). For extra safety and accuracy.
• Equipped with Auto-start Wireless System (AWS) for wireless communication between battery machine and battery vacuum.
• Features Automatic torque Drive Technology (ADT): the machine electronically adjusts cutting speed and torque in the event of resistance to maintain power.
• Integrated LED lighting for better work visibility.
• Suitable for outdoor use, due to eXtreme Protection Technology (XPT) well protected against the penetration of dust and moisture.
• Mitre adjustment up to 45° with maximum grinding depth of 27 mm.

Technical data

• Platform: LXT 18 V
• Disc diameter: 125 mm
• Disc bore: 20 mm
• Sheet thickness: 1.0 - 2.2 mm
• No load speed: 8800 min-1
• Volt (voltage): 18 V
• Engine type: BL engine
• Shaft lock: Yes
• Soft start: yes
• Electric brake: Yes
• Softgrip: Yes
• Built-in lighting: Yes
• Material sole: Plate steel
• Dim. lxwxh: 283x158x172 mm
• Sound pressure level (LpA): 96 dB(A)
• Uncertainty (K) (LpA): 3 dB(A)
• Sound power level (LWA): 107 dB(A)
• Uncertainty (K) (LwA): 3 dB(A)
• Vibration ah cutting concrete: 4.0 m/s²
• Vibration (K) cutting concrete: 1.5 m/s²
• Weight (EPTA): 2.0 kg
• Weight with low LXT 18 V battery: 2.5 kg
• Weight with high LXT 18 V battery: 3.0 kg
• Diamond cutter wet/dry: Dry and Wet
• Sole material: Sheet steel
• Maximum depth of cut 0°: 40 mm
• Maximum depth of cut 45°: 27 mm
• Disc Ø maximum: 125 mm

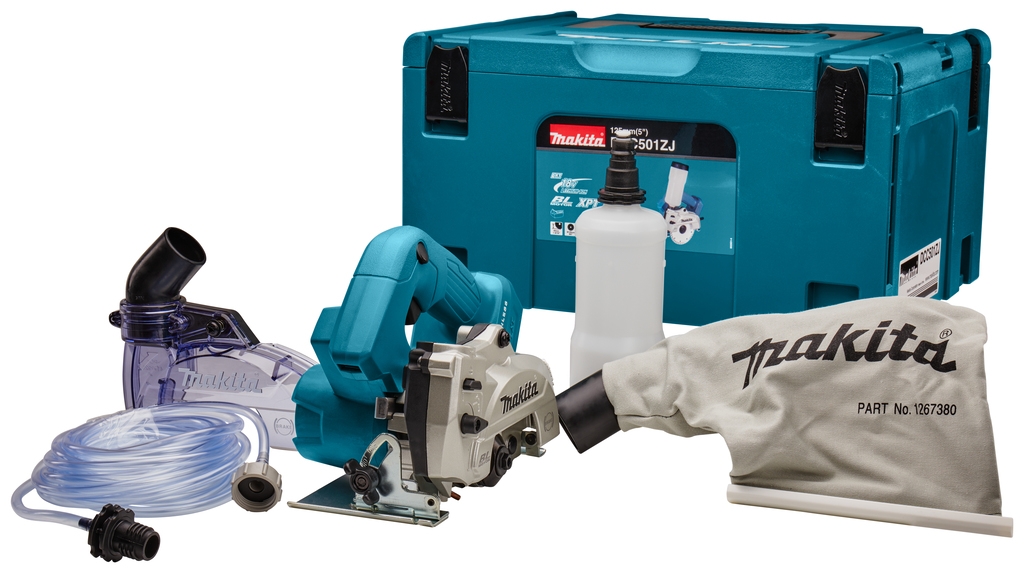

Scope of delivery

• 126738-0 Linen dust bag
• 191X01-4 Water supply kit
• 821551-8 Mbox3
• 835U78-8 Insert DCC500
• 783217-7 Allen wrench 5 mm
