Makita DLX4196JX1 DDF489|DTD173|DHR243|DGA504 18V 5.0Ah Li-ion Combo Set in M-Box

Makita DLX4196JX1 Combo Set DDF489|DTD173|DHR243|DGA504 18V 5.0Ah Li-ion in M-Box

User Benefits

• Set consists of four tools in 2 M-Boxes.
• DDF489: For intensive medium-duty screwdriving and heavy-duty drilling.
• DTD173: Compact, powerful, and highly advanced impact driver: 8 settings
• DHR243: Combination hammer ideal for holes up to 14 mm, but capable of drilling up to 24 mm in concrete, with an extra quick-release drill chuck.
• DGA504: Angle grinder for continuous, efficient grinding thanks to automatic speed control. Powerful and lightweight.

Special features of the DDF489

• LXT 18 V drill/driver with high drilling capacity.
• Suitable for intensive medium-duty screwdriving and heavy-duty drilling.
• 2 functions: screwing and drilling.
• Robust metal quick-release chuck.
• 21 torque settings for extra control during fastening.
• Extremely durable thanks to an aluminum gear housing and various battery safety features.
• Equipped with an energy-efficient and maintenance-free brushless motor.

Special features of the DTD173

• Highly advanced impact driver: 8 settings
• 1 wood setting: Automatic speed control; the tool starts at low speed until the screw encounters resistance in the material, preventing damage to the screw thread.
• 1 bolt setting: Auto-stop mode when rotating in reverse, prevents bolts or nuts from falling during disassembly.
• 2 T-settings: For working with Teks or self-tapping screws in both thin and thick metal.
• 4 adjustable speed settings: from low to medium to high to maximum.
• Control panel on the back of the tool; easily check and adjust the mode during use.
• Quick-change button under the head for adjusting impact force.
• Programmable preferred setting selectable via the quick-change button.
• Wider range of fasteners: from light-duty to heavy-duty (M4 to M14).
• Equipped with improved shaft bearings to reduce bit movement.
• Equipped with dimmable ring lighting with 3 settings for shadow-free work.
• The light can be turned on and off manually, allowing the tool to also be used as a flashlight.
• Unprecedentedly compact: extremely maneuverable for tight spaces.
• Well-balanced: comfortable even for overhead work.
• Comfortable to use thanks to its light weight and ergonomic, rubber-coated handle.
• Exceptionally energy-efficient and durable thanks to its brushless motor.
• Ideal machine for precise and reliable assembly.
• Better protected against the ingress of dust and moisture.

Special features of the DHR243

• Lightweight and compact machine with three functions: drilling, hammer drilling, and light chiseling.
• Drilling and dust extraction in one.
• When used with the dust extraction system, the maximum drilling depth, including the SDS-PLUS connection, is 160 mm.
• TNO-certified for dust-free operation.
• Approved by the Dutch Inspectorate for Labor and Social Affairs (Inspectie SZW).
• Equipped with two interchangeable drill chucks: an SDS-PLUS and a quick-release drill chuck.
• Ideal combination hammer for holes up to 14 mm, but can drill up to 24 mm in concrete.
• High productivity thanks to an energy-efficient brushless motor.
• Durable machine thanks to protection against overload, overheating, and deep discharge of the battery.
• The machine’s ergonomic design makes drilling in ceilings, floors, and walls easy and comfortable.
• Rubber vibration-absorbing suspension ensures uninterrupted power delivery under all conditions.

Special Features of the DGA504

• Safer thanks to the anti-restart function.
• Light signals warn the user of overload.
• Compatible with all standard 115 and 125 mm grinding discs.
• Longer grinding disc service life thanks to 8,500 rpm.

Technical Specifications DDF489

• LXT 18 V platform
• Connection/mounting: 13 mm quick-release chuck with spindle lock
• Motor type: BL motor
• Variable speed control (switch)
• Built-in light: Yes
• Aluminum gear housing: Yes
• No-load speed (setting 1) 0–550
• No-load speed (position 2) 0–1,800
• Slip clutch positions: 21 positions
• Soft grip Yes
• Battery protection
• Electric brake: Yes
• Dimensions LxWxH 174x81x219 mm
• Weight with low-capacity LXT 18 V battery: 1.8 kg
• Weight with high-capacity LXT 18 V battery: 2.5 kg
• Voltage 18 V
• Maximum drilling diameter in metal: 13 mm
• Number of speeds: 2
• Maximum torque (hard): 73 Nm
• Maximum soft torque: 40 Nm
• Gear type: Mechanical
• Battery charge indicator: No
• Forward/reverse rotation: Yes
• Minimum chuck capacity: 1.5 mm
• Maximum chuck capacity: 13.0 mm
• Maximum drilling diameter in wood: 51 mm
• Hole saw maximum diameter 38 mm
• Maximum low-speed cylinder-head drill bit diameter: 51 mm
• Maximum hole saw diameter at low speed: 51 mm
• Adjustable torque range (approx.) minimum 1 Nm
• Adjustable torque range (approx.) maximum 5 Nm
• Type of variable speed control: Switch
• No-load speed (position 1): maximum 550 revolutions per minute
• No-load speed (position 2): maximum 1,800 revolutions per minute
• Variable speed control: Yes

Technical Specifications DTD173

• Platform: LXT 18 V
• Connection/mounting: 1/4" hex, Type E
• No-load speed (setting 1): 0–1,100 rpm
• No-load speed (setting 2): 0–2,100 min⁻¹
• No-load speed (setting 3): 0–3,200 min⁻¹
• No-load speed (setting 4): 0–3,600 min⁻¹
• T-setting for self-tapping screws: Yes
• A setting for more control: Yes
• Variable speed control (switch): Yes
• Variable speed control (digital): Yes
• Max. torque (setting 1): 20 Nm
• Max. torque (setting 2): 50 Nm
• Max. torque (setting 3): 170 Nm
• Max. torque (setting 4): 180 Nm
• Built-in lighting: Yes
• Voltage: 18 V
• Stroke rate (setting 1): 0–1,100 min⁻¹
• Stroke rate (setting 2): 0–2,600 min⁻¹
• Stroke rate (setting 3): 0–3,600 min⁻¹
• Stroke rate (setting 4): 0–3,800 min⁻¹
• Soft grip: Yes
• Motor type: BL motor
• Electric brake: Yes
• Battery protection: Yes
• Sound pressure level (LpA): 100 dB(A)
• Uncertainty (K) (LpA): 3.0 dB(A)
• Sound power level (LWA): 108 dB(A)
• Uncertainty (K) (LwA): 3.0 dB(A)
• Counterclockwise and clockwise rotation: yes
• Vibration (ah) confirmed up to max.: 12.9 m/s²
• Vibration (K) confirmed up to max.: 1.5 m/s²
• Weight (EPTA): 0.85 kg
• Weight with low-capacity LXT 18 V battery: 1.2 kg
• Weight with high-capacity LXT 18 V battery: 1.5 kg
• Battery charge indicator: No
• Maximum self-tapping screw/bolt diameter: 6.3 mm
• Variable speed control type: Switch / digital

Technical Specifications DHR243

• SDS-PLUS chuck
• Ideal drilling range (concrete): 4–16 mm
• Concrete drill bit diameter: 4–24 mm
• Core drill capacity: 35–54 mm
• Core drill capacity: 32–65 mm
• Metal drill bit capacity: 13 mm
• Drilling capacity in wood: 26 mm
• Impact force (EPTA) 2.0 joules
• Number of adjustable chisel positions: 40
• Variable speed control (switch): Yes
• No-load speed (setting 1) 0–950 min⁻¹
• Number of strokes (setting 1) 0–4,700 min⁻¹
• Voltage (volts) 18 V
• Motor type: BL motor
• Dimensions LxWxH 460x90x294 mm
• Number of mechanical revolutions 1 Counterclockwise and clockwise rotation yes
• Battery protection: Yes
• (Safety) slip clutch: Yes
• Electric brake: Yes
• Soft grip: Yes
• Sound pressure level (LpA): 90 dB(A)
• Sound pressure level (K) 3 dB(A)
• Vibration (ah) when hammer drilling in concrete 13.5 m/s²
• Vibration (K) hammer drilling in concrete 1.5 m/s²
• Vibration (ah) when drilling in metal 3.5 m/s²
• Vibration (K) when drilling in metal 1.5 m/s²
• Vibration (ah) chiseling with side handle 10.5 m/s²
• Vibration (K) chiseling with side handle 1.5 m/s²

Technical Specifications DGA504

• Battery voltage 18 V
• Battery capacity: 5.0 Ah
• Battery type: Li-ion
• Charging time 45 min
• Grinding disc diameter: 115/125 mm max.
• Spindle lock: Yes
• No-load speed 8,500 min⁻¹
• Vibration ah 8.5 m/s K 1.5 m/s
• Sound pressure level: 75 dB(A)
• Weight (EPTA): 2.37 kg
• Dimensions LxWxH 317x129x126 mm
• Connection/mounting: M14

Package Contents

• 1 x DDF489Z 18V LXT Cordless Drill Body
• 1 x DTD173Z 18V LXT Cordless Impact Driver Body
• 1 x DHR243Z 18V LXT Cordless Hammer Drill
• 1 x DGA504Z 18V LXT Cordless Angle Grinder Body
• 1 x 158237-4 Soft-grip side handle for M8 angle grinder
• 1 x 194079-2 Quick-Change Drill Chuck 1.5–13 mm HR Quick-Change I
• 1 x 195584-2 LXT DC18RC Fast Charger
• 1 x 197280-8 BL1850B LXT 18 V 5.0 Ah Battery
• 1 x 199710-5 Protective cap seal for cutting, 125 mm
• 1 x 324219-0 Depth stop for impact drill/drill and combi hammer
• 1 x 346317-0 Long Carrying Hook for Various Machines
• 1 x 782423-1 Straight cam spanner, 35 mm; Lock nut for angle grinder
• 1 x 821551-8 Mbox3-Makpac 3
• 1 x 821552-6 Mbox4-Makpac 4
• 1 x 837864-7 Case insert/inlay combo set Mbox3, DLX2220/2418/2423/2432
• 1 x D-80086 Diamond blade 125x22.23x1.8 mm, segmented
• 1 x E-12011 10-piece impact screwdriver bit set, Impact Black
• 1 x E-22953-12 Stainless Steel cutting disc 125x22.23x1.0 mm, 12 pieces
• 1 x 784614-0 Screwdriver Bit SL-PH2

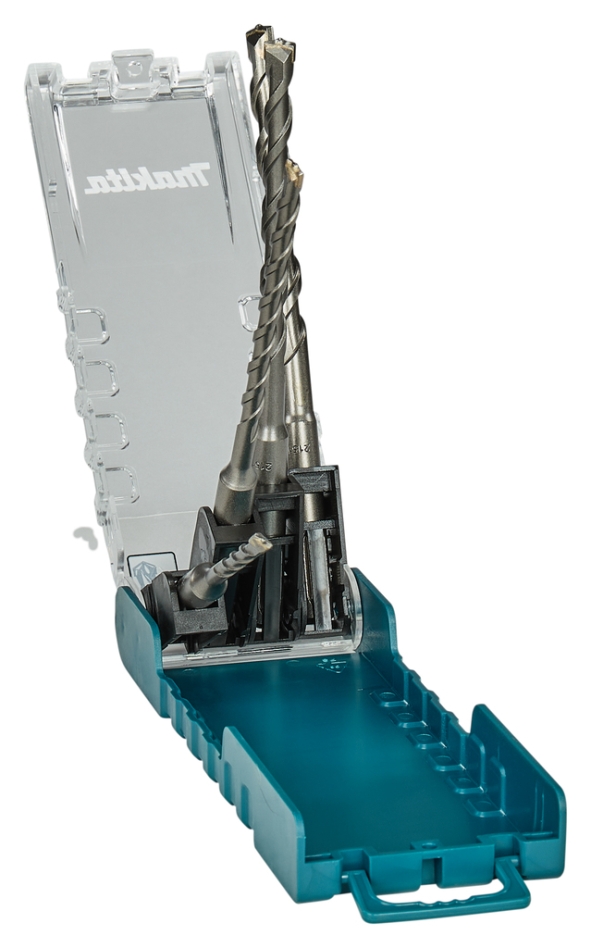

• 1 x B-49052 B2S: 5-piece SDS-PLUS concrete drill bit set
