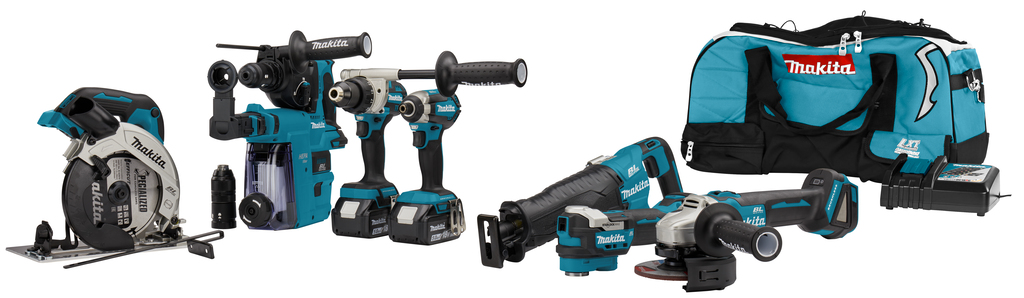

Makita DLX7031TX1 Combination Set DDF492|DTD153|DHR243|DGA504|DHS660|DJR187|DTM52 18 Volt 5.0 Ah

Makita DLX7031TX1 Combo Set DDF492|DTD153|DHR243|DGA504|DHS660|DJR187|DTM52 18 Volt 5.0 Ah

Now a total of 5 years warranty on Makita DLX4155TX1 machines(*)

(*) In addition to Makita’s manufacturer’s warranty (3 years after registration with Makita), you’ll receive an extra 2 years of TOOLPLUS* warranty from us. ToolNation TOOLPLUS* Warranty: 2 additional years of TOOLPLUS warranty on power tools

User Benefits

• Set includes seven tools in a carrying case.
• DDF492: Powerful, robust, and durable drill/driver for heavy-duty jobs.
• DTD153: Compact impact driver for a wide range of screwing and assembly tasks (M4–M16).
• DHR243: Combination hammer with dust extraction, ideal for holes up to 14 mm, but capable of drilling up to 24 mm in concrete, with an extra quick-release chuck.
• DGA504: Powerful 125 mm grinder with automatic speed control.
• DHS660: Compact 165 mm circular saw for continuous, efficient cutting thanks to automatic speed control.
• DJR187: Fast and robust reciprocating saw with an energy-efficient brushless motor.
• DTM52: Oscillating multitool with AVT and Starlock Max connection for: sanding, scraping, cutting, and sawing.

Special features of the DDF492

• Extremely strong and durable for the toughest jobs.
• Consistent speed and power under load, even during heavy-duty use.
• 2 functions: screwing and drilling.
• High ergonomic comfort thanks to excellent tool-to-battery balance and a comfortable soft grip.
• Extremely durable thanks to the brushless motor: lower heat generation and greater protection.
• Extra durable thanks to overload and deep-discharge protection.
• Equipped with dual LED lights for even better visibility.

Special features of the DTD153

• For a wide range of screwing and assembly tasks (M4–M16).
• Get more work done thanks to the brushless motor.
• Extremely compact and very lightweight (1.5 kg).
• Maintenance-free brushless motor with electronic control delivers a constant speed.
• Integrated dual LED lighting for more comfortable work in poorly lit areas.
• Better protection against dust and moisture ingress.

Special features of the DHR243

• Lightweight and compact machine with three functions: drilling, hammer drilling, and light chiseling.
• Equipped with two interchangeable drill chucks: an SDS-PLUS and a quick-release chuck.
• Ideal combination hammer for holes up to 14 mm, but can drill up to 24 mm in concrete.
• High productivity thanks to an energy-efficient brushless motor.
• Durable machine thanks to protection against overload, overheating, and deep discharge of the battery.
• The tool’s ergonomic design makes drilling in ceilings, floors, and walls easy and comfortable.
• Rubber vibration-absorbing mount ensures uninterrupted power delivery under all conditions.
• The DHR243 replaces the BHR243.

Special features of the DGA504

• Safer thanks to the anti-restart function.
• Light signals warn the user of overload.
• Compatible with all standard 115 and 125 mm grinding discs.
• Longer grinding wheel life thanks to 8,500 rpm.

Special Features of the DHS660

• Compact and lightweight 165 mm circular saw with a miter angle of up to 50°.
• Features Automatic Torque Drive Technology (ADT): the machine electronically adjusts the cutting speed and torque in response to resistance to maintain power.
• Enhanced safety: equipped with an electric motor brake, the saw blade comes to a quick stop.
• The soft-start function ensures the machine starts smoothly.
• Airflow blows sawdust away from the machine.
• Durable machine for the batteries thanks to protection against overload, overheating, and deep discharge of the battery.
• Energy-efficient machine thanks to a brushless motor.
• Dual LED lighting: illuminates the saw blade and cutting line for a better view of the work area.
• External dust extraction possible

Special features of the DJR187

• A sturdy, yet fast and robust cordless reciprocating saw.
• Cuts smoothly and cleanly thanks to the new crank mechanism.
• Extra-reinforced stop, easily adjustable for depth without tools.
• Cuts faster thanks to the design of the new crank mechanism.
• Easy one-handed blade change: via a click system and without tools.
• Better protected against dust and moisture ingress.
• Comes standard with a carrying hook for easily hanging the machine on, for example, a scaffold tube.

Special features of the DTM52Z

• Oscillating multitool with Starlock Max connection for: sanding, scraping, cutting, and sawing.
• Very low vibration level of 2.5 m/s² thanks to Anti-Vibration Technology (AVT).
• Features a quick-release system: change accessories without tools.
• Compatible with Starlock, Starlock Plus, and Starlock Max blades.
• Versatile tool: wide range of consumables for various applications.
• High comfort thanks to a slim, ergonomically optimized handle.
• Easy to work in the tightest corners and spaces: blades can be set at 12 different angles.
• Equipped with speed control (rotary knob) for working on different materials.
• Equipped with soft start: ensures a smooth start when cutting into the material.
• Particularly suitable for metalworking, especially with thin sheet metal.
• High productivity and constant speed thanks to the brushless motor.
• Integrated LED lighting for a better view of the work area.
• Suitable for outdoor use; eXtreme Protection Technology (XPT) provides better protection against dust and moisture ingress.
• Equipped with restart protection: to prevent accidental startup after changing the battery.

Technical Specifications DDF492

• Platform: LXT 18 V
• Connection/chuck: 13 mm quick-release chuck with spindle lock
• Chuck: 1.5–13 mm
• Wood-threaded bolt/screw: 10x90 mm
• Drilling capacity in wood: 76 mm
• Hole saw capacity: 50 mm
• Cylinder-head drill capacity: 76 mm
• Hole saw capacity: 152 mm
• Drilling capacity in metal: 13 mm
• Variable speed control: via switch
• Light: Yes
• Slip clutch: 21 settings
• Aluminum gear housing: Yes
• No-load speed (setting 1): 0–550 rpm
• No-load speed (setting 2): 0–2,100 rpm
• Soft grip: Yes
• Adjustable torque range: approx. 1–12 Nm
• Rotation direction: Clockwise and counterclockwise
• Battery protection: Yes
• Tightening torque (soft/hard): 65 / 130 Nm
• Electric brake: Yes
• Number of mechanical speeds: 2
• Dimensions (L x W x H): 179 x 81 x 265 mm
• Sound pressure level (LpA): 80 dB(A)
• Uncertainty (K) (LpA): 3 dB(A)
• Sound power level (LWA): 88 dB(A)
• Uncertainty (K) (LWA): 3 dB(A)
• Vibration (ah) when drilling in metal: 2.5 m/s²
• Vibration (K) when drilling in metal: 1.5 m/s²
• Weight: 1.6 kg
• Weight with low-capacity LXT 18 V battery: 2.3 kg
• Weight with high-capacity LXT 18 V battery: 2.6 kg
• Voltage (Volts): 18 V

Technical Specifications DTD153

• Voltage (V): 18 V
• Motor type: BL motor
• Connection/mounting: 1/4 hex
• Variable speed control (switch): Yes
• Forward and reverse rotation: Yes
• Built-in light: Yes
• No-load speed (setting 1) 0–3,400 min⁻¹
• Stroke rate (setting 1) 0–3,600 min⁻¹
• Max. torque (setting 1) 170 Nm
• Metric-threaded screw (M) 4–8 mm
• Wood-threaded screw (length) 22–125 mm
• Soft grip: Yes
• Dimensions LxWxH 126x79x238 mm
• Sound pressure level (LpA) 96 dB(A)
• Sound pressure level (K) 3 dB(A)
• Weight with BL1815N battery: 1.3 kg
• Weight with BL1830 battery: 1.5 kg
• Weight with BL1840 battery: 1.5 kg
• Vibration (K) confirmed up to max. 13 m/s²
• Vibration (K) confirmed up to max. 1.5 m/s²
• Battery protection: Yes
• High-tensile bolt (M): 5–14 mm
• Electric brake: Yes
• Weight with BL1820 battery: 1.3 kg
• Weight with BL1820B battery: 1.3 kg
• Weight with BL1830B battery: 1.5 kg
• Weight with BL1840B battery: 1.5 kg
• Weight with BL1850 battery: 1.5 kg
• Weight with BL1850B battery: 1.5 kg
• Standard bolt (M) 5-16 mm

Technical Specifications DHR243

• Max. in steel: 13 mm
• Max. in wood: 27 mm
• Max. in concrete: 24 mm
• No-load speed: 0–950 rpm
• Strokes per minute: 0–4,700 spm
• Individual impact energy: 2.0 J
• Vibration: 15/sec²
• Charging time: approx. 22 min
• Net weight: 3.3 kg

Technical Specifications DGA504

• Battery voltage: 18 V
• Battery type: Li-ion
• Charging time: 45 min
• Grinding Disc Diameter: 115/125 mm max.
• Spindle lock: Yes
• No-load speed 8,500 min⁻¹
• Vibration ah 8.5 m/s K 1.5 m/s
• Sound pressure level: 75 dB(A)
• Weight (EPTA): 2.37 kg
• Dimensions LxWxH 317x129x126 mm
• Connection/mounting: M14

Technical Specifications DHS660

• Saw blade diameter 165 mm
• Max. cutting capacity (height) at 0°: 57 mm
• Max. cutting capacity (height) at 45°: 41 mm
• Max. cutting capacity at 50°: 37 mm
• Tilt L/R 0 / 50 º
• Cutting height: 57 mm
• Saw blade arbor hole 20 mm
• Blade thickness 1.0–1.8 mm
• No-load speed 5000 min⁻¹
• Spindle lock: Yes
• Dimensions LxWxH 270x186x250 mm
• Voltage 18 V
• Motor type: BL motor
• Soft start: Yes
• Soft grip: Yes
• Built-in light: Yes
• Electric brake: Yes
• Battery protection: Yes
• Protective cover material: Magnesium
• Base material: Aluminum
• Sound pressure level (LpA) 93 dB(A)
• Sound pressure level (K) 3 dB(A)
• Vibration (ah) when cutting wood: 2.5 m/s²
• Vibration (K) when cutting wood 1.5 m/s²
• Weight (EPTA) 2.5 kg
• Weight with BL1815N battery 2.9 kg
• Weight with BL1820 battery 2.9 kg
• Weight with BL1820B battery: 2.9 kg
• Weight with BL1830 battery 3.2 kg
• Weight with BL1830B battery: 3.2 kg
• Weight with BL1840 battery: 3.2 kg
• Weight with BL1840B battery: 3.2 kg
• Weight with BL1850 battery: 3.2 kg
• Weight with BL1850B battery: 3.2 kg
• Weight with BL1860B battery: 3.2 kg

Technical Specifications DJR187

• Variable speed control (switch): Yes
• Tool-free saw blade change: Yes
• Stroke length: 32 mm
• Sound pressure level (LpA): 84 dB(A)
• Dimensions LxWxH 439x83x230 mm
• Max. cutting capacity in wood at 0° 255 mm
• Max. cutting capacity for pipes/tubes at 0°: 130 mm
• Electric motor type: BL52-24
• Number of electrical speeds 2
• Number of strokes (setting 1): 0–2,300 min⁻¹
• Stroke rate (setting 2): 0–3,000 min⁻¹
• Battery protection: Yes
• Electric brake: Yes
• Sound pressure level (K) 3 dB(A)
• Weight with BL1815N battery 3.3 kg
• Weight with BL1820 battery 3.3 kg
• Weight with BL1820B battery: 3.3 kg
• Weight with BL1830 battery: 3.5 kg
• Weight with BL1840 battery: 3.5 kg
• Weight with BL1840B battery: 3.5 kg
• Weight with BL1850 battery: 3.5 kg
• Weight with BL1850B battery: 3.5 kg
• Built-in light: Yes
• Soft grip: Yes
• Motor type: BL motor
• Vibration (K) when cutting wood: 1.5 m/s²
• Vibration (K) when cutting particleboard: 1.5 m/s²
• Vibration ah when cutting wood 15.5 m/s²
• Vibration (ah) when cutting particleboard 16.5 m/s²
• Volt (voltage) 18 V

Technical Specifications DTM52

• LXT 18 V platform
• Tool-free saw blade change
• Oscillation angle left/right 1.8°
• Oscillation rate 10,000–20,000 rpm
• Variable speed control (rotary knob)
• Soft start
• Constant speed
• Restart protection
• Built-in lighting
• Soft grip
• Voltage 18 V
• Motor type: BL motor
• Dimensions LxWxH 322x95x126 mm
• Sound pressure level (LpA) 76 dB(A)
• Uncertainty (K) (LpA) 3 dB(A)
• Vibration (ah) when cutting wood 2.5 m/s²
• Vibration (K) when sawing wood 1.5 m/s²
• Vibration (ah) when sanding metal: 2.5 m/s²
• Vibration (K) when sanding metal 1.5 m/s²
• Weight with high-capacity LXT 18 V battery: 2.0 kg
• Battery protection

What’s Included

• 1 x DDF492Z 18V LXT Cordless Drill Body
• 1 x DTD153Z 18V LXT Cordless Impact Driver
• 1 x DHR243Z 18V LXT Cordless Hammer Drill Body
• 1 x DGA504Z 18V LXT Cordless Angle Grinder Body
• 1 x DJR187Z 18V LXT Cordless Reciprocating Saw Body
• 1 x DHS660Z 18V LXT Cordless Circular Saw Body
• 1 x DTM52Z 18V LXT Cordless Multi-Tool
• 1 x 122F13-8 Side Handle for Drill/Screwdriver DDF486, DDF492
• 1 x 158237-4 Side Handle (Soft Grip) for M8 Angle Grinder
• 1 x 164095-8 Parallel Guide for Circular Saw/Diamond Cutter
• 1 x 194079-2 Quick-Change Drill Chuck 1.5–13 mm HR Quick-Change I
• 1 x 195584-2 LXT DC18RC fast charger
• 2 x 197280-8 BL1850B LXT 18 V 5.0 Ah battery
• 1 x 199230-9 Dust extraction adapter for circular saws DHS660, DHS661
• 1 x 199570-5 Dust extraction adapter with collection box for DX07BHR243, DHR243
• 1 x 199710-5 Protective cap seal for 125 mm cut-off
• 1 x 324219-0 Depth stop for impact drill/drill and combi hammer
• 1 x 346317-0 Long carrying hook for various machines

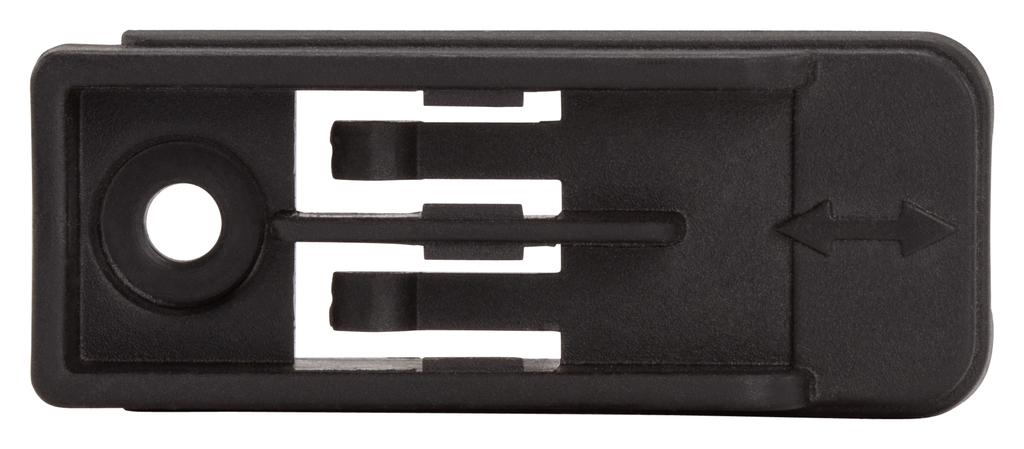

• 1 x 452947-8 Bit magazine
• 1 x 782423-1 Straight cam spanner, 35 mm; Lock nut for angle grinder
• 1 x 783203-8 5 mm angle Allen wrench
• 1 x 784614-0 Screwdriver bit PH2xSL6x45 mm, standard (double-sided)
• 1 x 831278-2 Tool bag, blue
• 1 x A-80656 Deburring disc, stainless steel, 125x22.23x6 mm
• 1 x 194248-5 Reciprocating saw blade set

Dealer warranty:

Toolnation is an official Makita dealer and offers you a full warranty in accordance with Makita’s terms and conditions.

It is important for you, as a customer, to purchase a product with a full warranty. In practice, it is all too common for items to be offered at lower prices on various websites. These are often machines imported from abroad that have been modified. This can result in malfunctions or even fires. As a result, manufacturers’ warranties on these products are usually either unavailable or limited to a maximum of 12 months. Therefore, always make sure you make your purchases from an official brand dealer! At Toolnation, you can be sure of that!
