Makita VR004GU101 XGT 40V Max Cordless Concrete Vibrator, 1200 mm, 1x 40V 4.0Ah battery and fast charger in a box

Makita VR004GU101 XGT 40V Max Cordless Concrete Vibrator, 1200 mm, 1x 40V 4.0Ah battery and quick charger in a box

This XGT 40V Max concrete vibrator, with a diameter of 38 mm and a length of 1200 mm, is suitable for compacting concrete structures. Thanks to the two-speed adjustable rotation, the machine can be easily adapted to the task at hand. The constant rotation ensures that the machine maintains its speed even under load.

The machine offers optimal freedom of movement without a power cord and is therefore also suitable for jobs where 230 V power is not available. The lock-on switch allows for extended use, and the vibrating rod can be held in various ways, which helps prevent hand and wrist fatigue.

Special Features

• XGT 40 V Max Concrete Vibrating Needle with a diameter of 38 mm and a length of 1200 mm.

• Vibrating rods are available for separate purchase in various models.

• Variable speed with 2 settings: Normal mode & Power mode.

• Features constant speed: the machine maintains its speed even under load and delivers consistent results.

• Optimal freedom—no more annoying power cords.

• For optimal compaction of concrete structures, even where 230 V power is not available.

• Equipped with a lock-on switch.

• The vibrating rod can be held in various ways, which prevents hand and wrist fatigue.

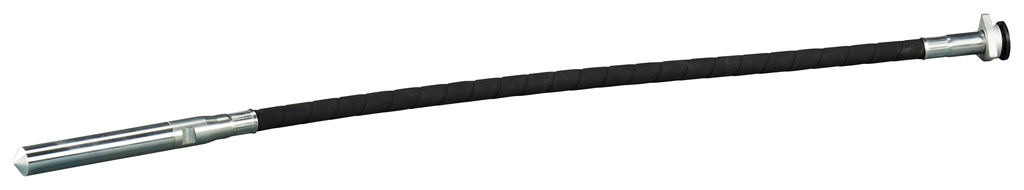

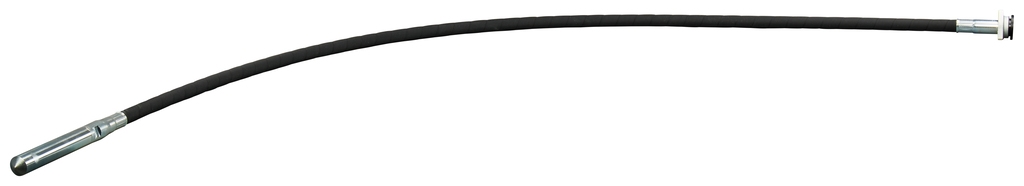

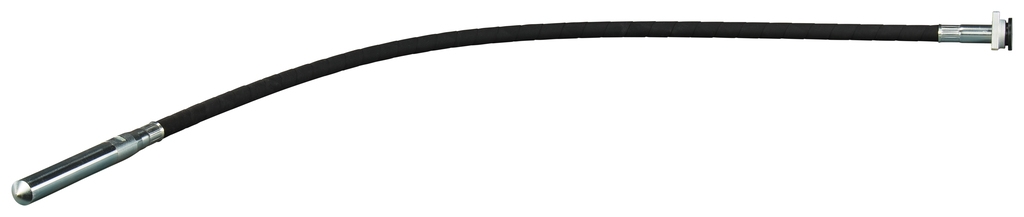

• Vibrating rods with a diameter of 32 mm are available in lengths of 1,200 mm, 1,700 mm, and 2,400 mm.

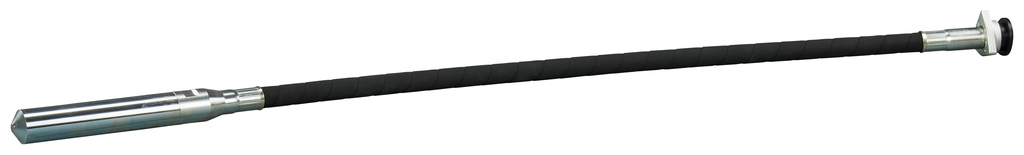

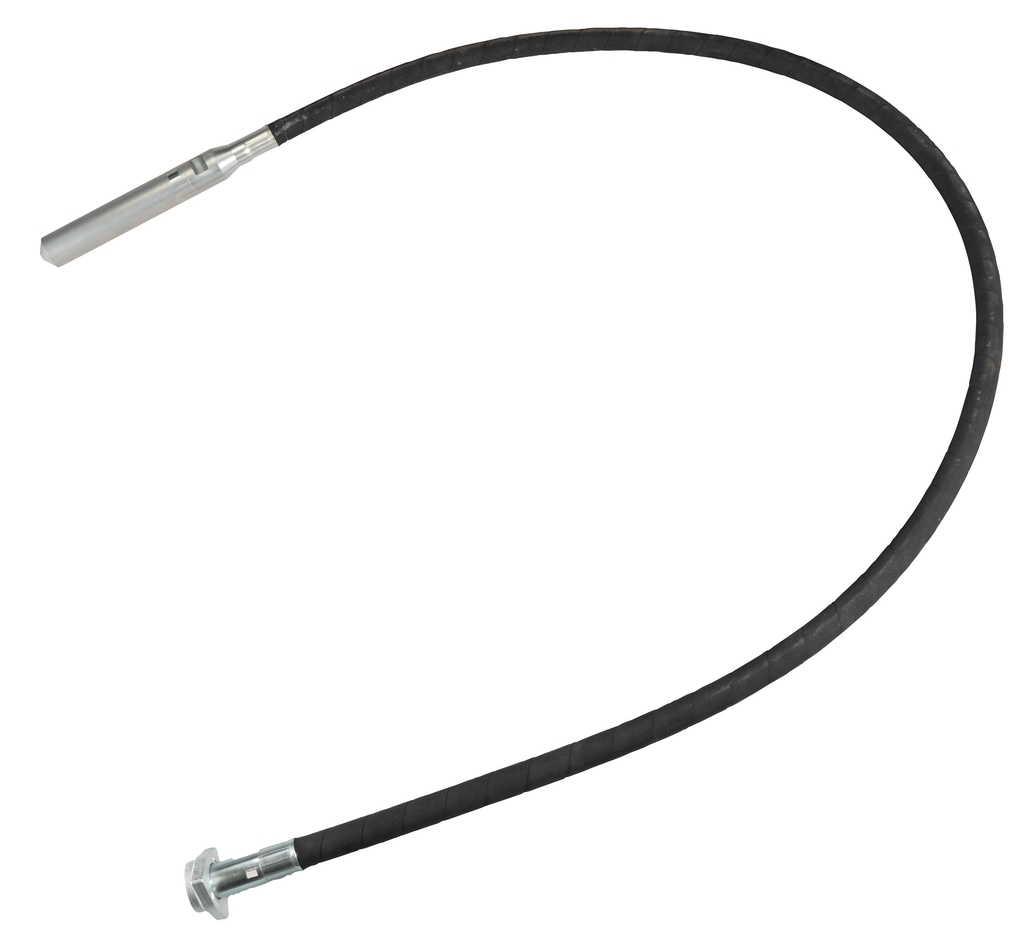

• Vibrators with a diameter of 38 mm are available in lengths of 1,200 mm and 2,400 mm.

• The battery guard is interchangeable; part number 1910J1-0 is required when used with the BL4050F and BL4080F.

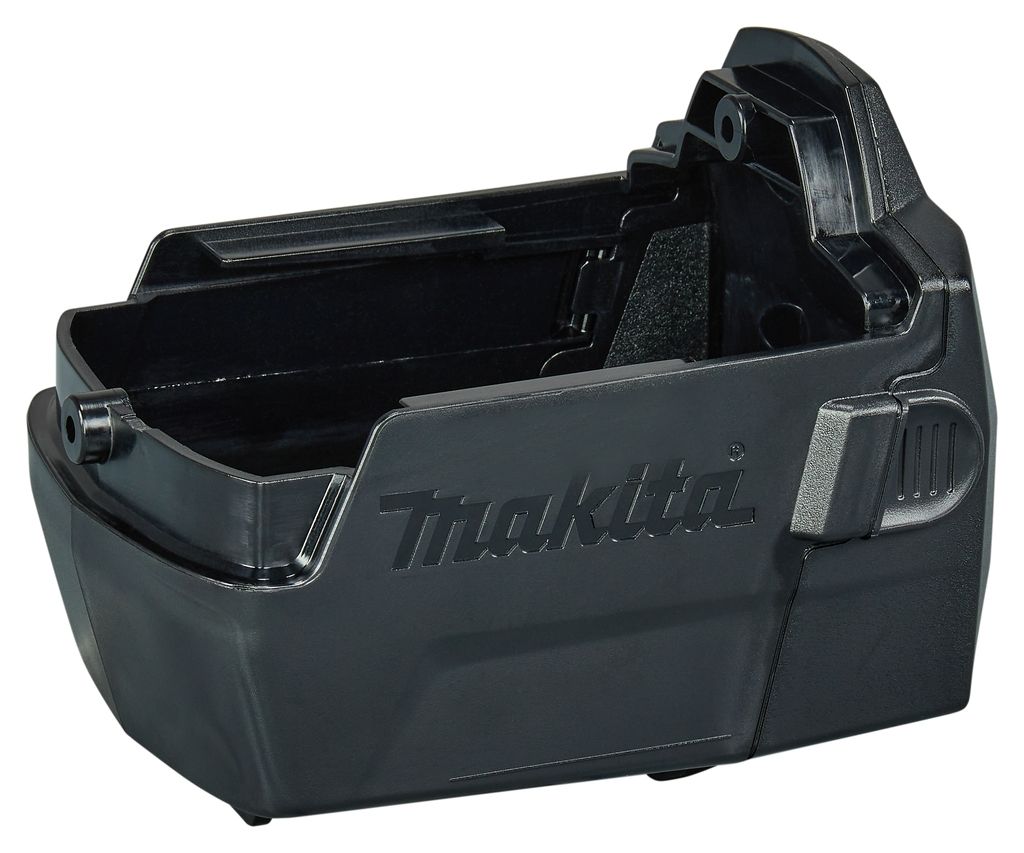

• The battery protector is interchangeable; 1910J4-4 is required when used with the PDC1200 adapter 191N62-4.

Technical Specifications

• Platform: XGT 40 V Max

• Voltage: 36 V

• Vibrating needle diameter: 38 mm

• Oscillating needle length: 1200 mm

• Oscillating movements: 12,000–15,500 rpm

• Motor: BL motor

• Constant speed: Yes

• Lock function: Yes

• Restart protection: Yes

• Soft grip: Yes

• Dimensions (L × W × H): 1493 × 122 × 258 mm

• Sound pressure level: 80 dB(A)

• Vibration under load: 4.9 m/s²

• Low-power runtime: 1:00 hour (BL4040F), 1:15 hour (BL4050F), 2:00 hours (BL4080F), 8:30 hours (PDC1200)

• High operating time: 0:45 hours (BL4040F), 0:55 hours (BL4050F), 1:30 hours (BL4080F), 6:25 hours (PDC1200)

Package Contents

• 1x BL4040F XGT 40 V Max 4.0 Ah battery (1910N6-8)

• 1x XGT DC40RA fast charger (191E07-8)

• 1x XGT battery cover (412393-7)

• 1x 8 mm open-end wrench (781213-9)
