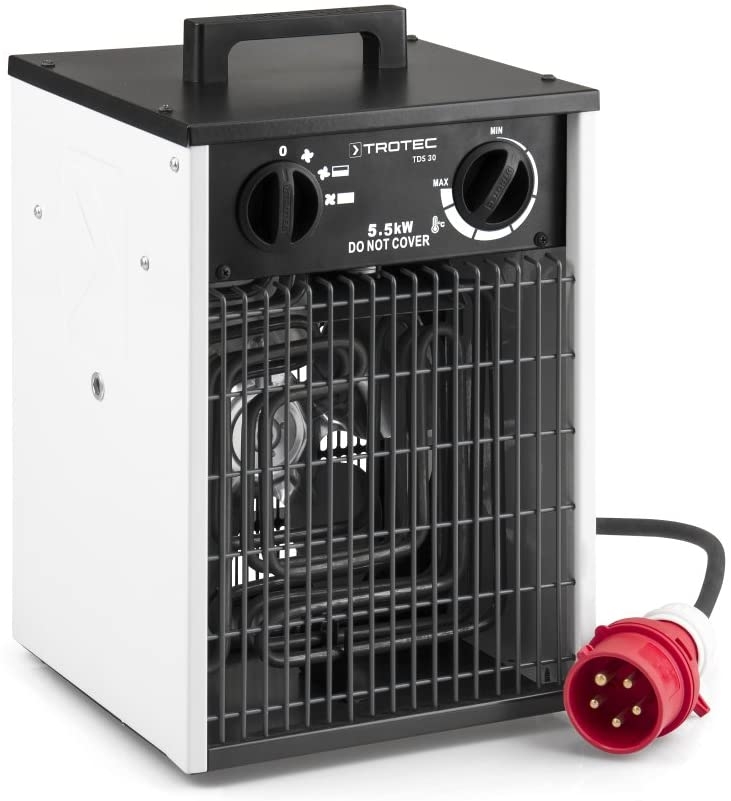

Trotec 1410000017 TDS 30 Electric Stove 5.5 kW 400 volt

Trotec 1410000017 TDS 30 Electric Stove 5.5 kW 400 volts

Description

Unlike direct-fired gas or oil heaters, TDS Series electric unit heaters do not consume oxygen or produce combustion fumes, allowing the units to be used virtually anywhere

• The electric heaters are particularly suitable for temperature control of unheated interiors.
• The possibility of hanging it on the wall or mounting it under the ceiling opens a wide range of different application areas, for example, for heating construction containers, market stalls, greenhouses, small halls, garages, workshops, boat houses or for assembly work .
• Thanks to the integrated thermostat control, the generated hot air flow can be steplessly set to the desired temperature in all TDS models.
• TDS electric heaters (except TDS 10) can be used in fan mode without a heating function and have a multi-stage power control to dose the heating power as needed for optimal temperature control.

Benefits for Practice

100% TROTEC - development, design, production

• Multi-level temperature control
• Integrated thermostat for constant warm air flow
• protection against overheating

10% more power compared to competing models (5.5 kW)

• Fan motor with thermal protection
• Condensation-free heat - no oxygen consumption - therefore ideal for indoor heating
• Wall or ceiling mounting possible - bracket available as accessory
• Standard built-in air conduction to optimize heat dissipation (guarantees maximum efficiency)
• Fan run function to cool down the components

Possible application areas

• construction container
• garages
• gastronomy
• greenhouses
• market stalls
• storage and work halls
• boat shed
• workshops
• shipbuilding
• and much more...

Technical Specifications

• Heat output stage 1: fan only
• Heat capacity stage 2: 2.75 kW
• Heat output stage 3: 5.5 kW (max. 4,730 kcal)
• Air flow rate: 458 m³/h
• Fan modes: 1
• Current consumption: 7.22 A
• Connection voltage: 400 V / 50 Hz
• Power connection: CEE 16 A, 5-pin
• Connection cable: integrated (length 1.6 m)
• Thermostat: integrated
• Mobility: portable
• Sound level: 46 dB (A)
• Overheating protection: yes
• Protection rating: IPX4
• Dimensions (L x W x H): 270 x 255 x 400 mm
• Weight: 5.6 kg

Note: The (cold) air is sucked in at the back of the electric heater, warmed up and blown out as warm air again.

• This raises the temperature of the room evenly over time
• Because a lot of air is sucked in and blown out, the blown out air does not feel particularly warm! However, due to the high air flow, the entire room is heated gradually.
