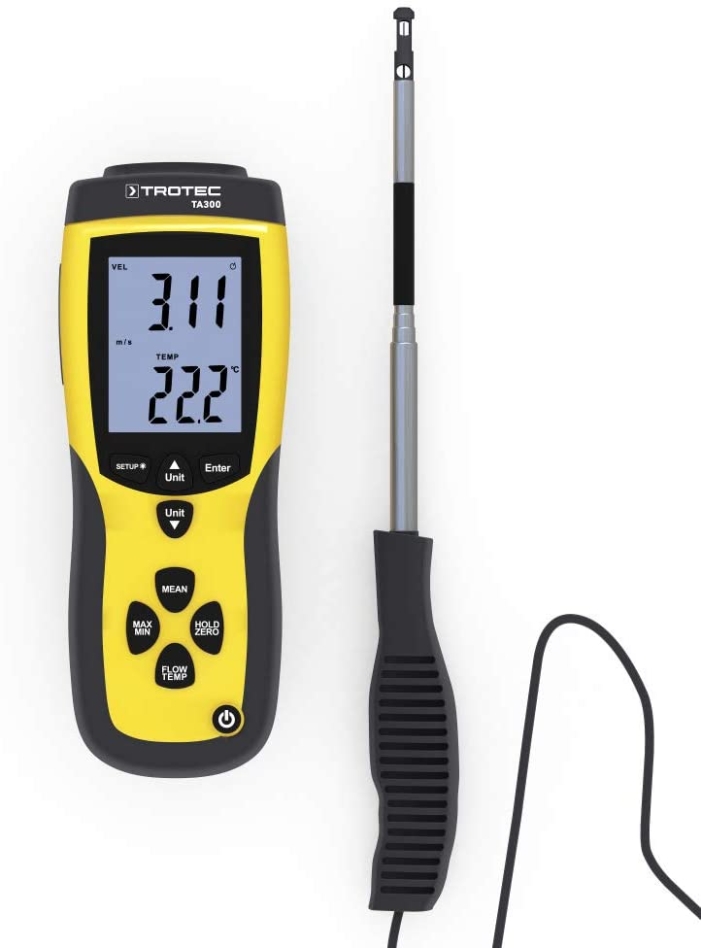

Trotec 3510004005 TA300 Anemometer straight probe including calibration certificate

Trotec 3510004005 TA300 Anemometer Straight Probe including Calibration Certificate

Description

The practical telescope probe makes this precision anemometer from the MultiMeasure Professional series a versatile measuring instrument for determining flow, temperature and volume flow.

• For measurements in channels or remote locations, the probe can be infinitely extended to a usable length of one meter.
• De combinatie van een robuuste hot-wire-sensor en hoogontwikkelde microprocessortechnologie voor signaalverwerking garandeert snelle en nauwkeurige meetresultaten voor elke behoefte, die ook in slecht verlichte omgevingen worden weergegeven op het verlichte dubbele display van het gemakkelijk af te lezen LC display van de TA300.

Benefits for Practice

• Slim telescopic probe - infinitely extendable to 1 m length - enables measurements even in hard-to-reach places
• Large, easy-to-read backlit LCD screen with dual readouts
• Punctual and temporal averaging
• Minimum, maximum and hold function
• delivery incl
• calibration certificate

Possible application areas

• Testing of heating, ventilation or air conditioning systems
• commissioning
• maintenance tasks
• Measurement of air velocity and temperature at air outlets and ventilation slots
• Certification of critical environments
• channel measurements
• Leak tests on windows or doors

Technical Specifications

• Airflow rate (m/s):
  Measuring range: 0.1 - 25.0
  Accuracy: ± 5% of reading + 1 unit of measure
  Resolution: 0.01
  Measuring principle: hot wire
• Airflow rate (mph):
  Measuring range: 0.2 - 55.8
  Accuracy: ± 5% of reading + 1 unit of measure
  Resolution: 0.1
• Airflow rate (km/h):
  Measuring range: 0.3 - 90.0
  Accuracy: ± 5% of reading + 1 unit of measure
  Resolution: 0.1
• Airflow rate (kn):
  Measuring range: 0.2 - 48.5
  Accuracy: ± 5% of reading + 1 unit of measure
  Resolution: 0.1
• Airflow rate (ft/min):
  Measuring range: 20 - 4,925
  Accuracy: ± 5% of reading + 1 unit of measure
  Resolution: 1
  Air volume flow (m³/min)
• ft³/min):
  Measuring range: 0.001 - 999,000
• Air temperature (°C):
  Measuring range: 0 to + 50
  Accuracy: ± 1
  Resolution: 0.1
  Other:
  Operating range temperature: 0 - 50 °C
  USB interface
  Power supply by battery type 9 V IEC 6LR61
  LC display
• Dimensions (L x W x H): 210 x 75 x 50 mm
• Weight: 280g
• Evaluation software included

Includes

• Battery included
• Cover
• Calibration Certificate
