Trotec 3510010021 FS200 Fog and smoke gas simulator

Trotec 3510010021 FS200 Fog and smoke gas simulator

Description

Thanks to the smart slim design of robust lightweight aluminum, transporting the FS200 to any location is easy and you benefit from a high degree of freedom of movement, even in narrow places such as safety ladders.

• On site, the FS200's patented canister holder can then be unlocked and opened in seconds.
• In this way, it increases the footprint and provides more stability even on unfavorable surfaces such as flat roofs with gravel.
• Both the extremely powerful turbine and the liquid pump of the FS200 can be steplessly adjusted in terms of performance for fog transport, thus adapting much more precisely to individual operating conditions.
• In addition, the intelligent power coupling of turbine, heater and pump ensures minutes of constant dense fog flow without interruptions due to post-heating, even at maximum turbine power.
• The fluid consumption of the FS200 is pleasantly low, reaching a maximum of only 100 ml per minute.

Some practical advantages at a glance:

Professional quality made in Germany Original Trotec production

• Rugged lightweight aluminum construction, so more than 40% lighter than the previous model
• Extremely powerful blower turbine, infinitely adjustable
• Significantly smaller dimensions compared to the previous model, ultra-compact and more than 40% smaller
• Space-saving integral solution with folding can holder
• Extra dense white smoke thanks to stepless liquid pump
• Easy to transport, even through bottlenecks such as safety ladders
• Intelligent power coupling of turbine, heater and pump for minutes of consistently dense fog without post-heating related interruptions
• Service-friendly design, easy filter changes in seconds
• Practice-optimized German industrial design

Technical specifications

• Fog time at maximum level: approx. 210 s
• Fog time at Average and below: Permanent fog
• Evaporator power: 1,500 W
• Turbine fan power: 1,600 W
• Power consumption max: 3,100 W
• Protection rating: IP54
• Air flow rate: approx. 68 l/s (245 m³/h)
• Fluid consumption at max
• Output: 100 ml/min
• Fluid consumption at continuous spray: 30 ml/min
• Warm-up time: about 7 minutes
• Connection voltage: 230 V / 50 Hz
• Dimensions (L x W x H): 270 x 250 x 275 mm
• Weight (without 5 liter liquid canister): 12.5 kg

Scope of delivery

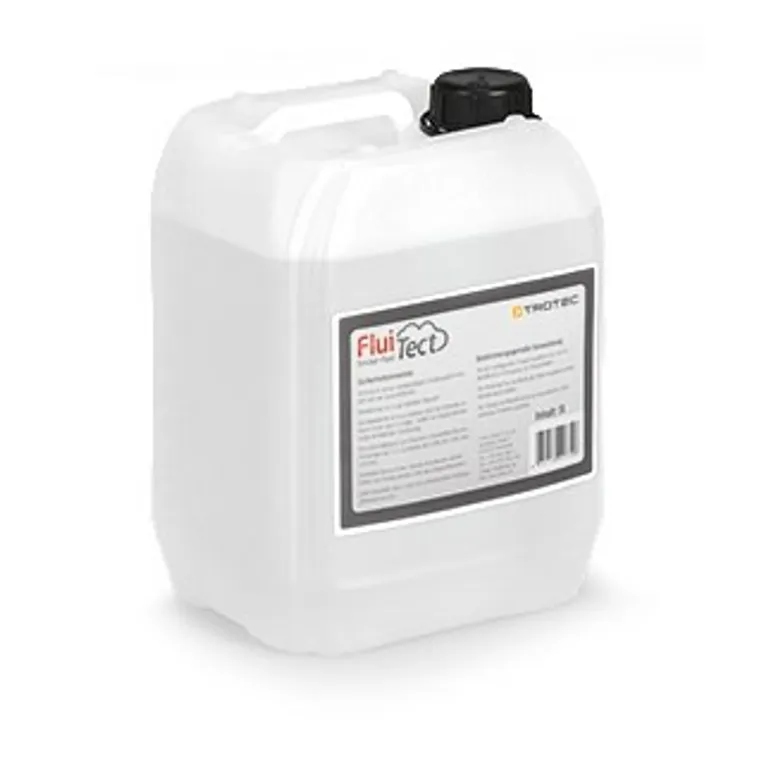

• The scope of delivery for the FS200 includes a 38 mm connection piece, a 5 liter jerry can of FluiTect brand fog concentrate, a fill hose with coupling plugs and a 5 meter fog hose (Tronect PV-A 38).
