Makita DLX3106TW1 Combo Set DDF484|DTD153|DHR242 18V 5.0Ah Li-ion 3 Batteries

Makita DLX3106TW1 Combo Set DDF484|DTD153|DHR242 18V 5.0Ah Li-ion 3x batteries + 5-year dealer warranty!

Now a total of 5 years warranty on Makita DLX3106TW1 tools(*)

(*) In addition to Makita’s manufacturer’s warranty, you’ll receive an extra 2 years of TOOLPLUS* warranty from us. ToolNation TOOLPLUS* Warranty: 2 additional years of TOOLPLUS warranty on power tools

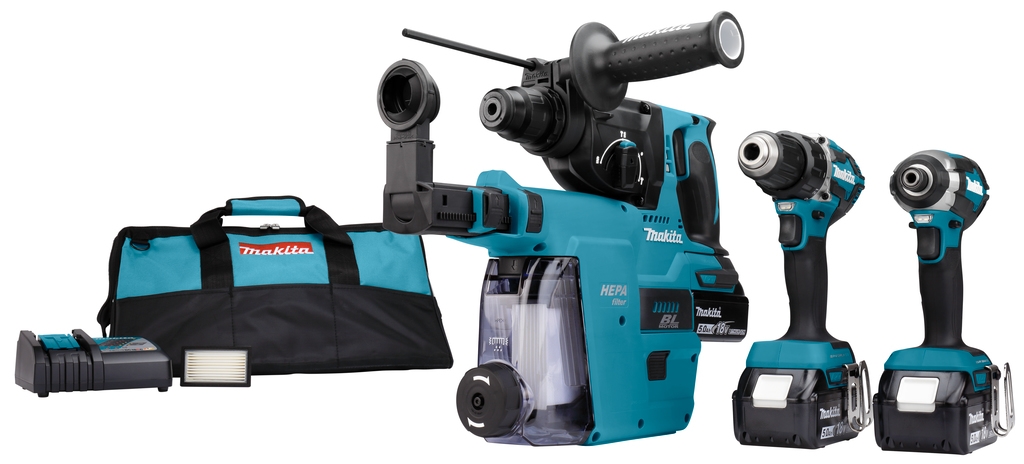

The DLX3106TW1 set consists of three tools in a sturdy case: the DDF484—a fast, robust, and durable 18 V drill/driver for all-around jobs; the DTD153— a compact 18 V impact driver for a wide range of screwdriving and assembly tasks (M4–M16), and the DHR242: an 18 V combi hammer with dust extraction, ideal for holes up to 14 mm, though it can handle up to 24 mm in concrete. The difference between the combo sets (DLX3106TV1 and DLX3106TW1) lies in the DHR242. The dust extraction system’s dust filter cover now features a rotary knob. This causes vibrations in the filter housing, allowing dust and debris to fall out of the filter and ensuring the filter continues to function optimally.

User Benefits

• The set consists of three tools in a sturdy bag.
• DDF484: Fast, robust, and durable drill/screwdriver for all-around jobs.
• DTD153: Compact impact driver for a wide range of screwing and assembly tasks (M4–M16).
• DHR242: Combination hammer with dust extraction, ideal for holes up to 14 mm, but capable of drilling up to 24 mm in concrete.

Special features of the DDF484

• High operating comfort thanks to excellent machine balance.
• Extremely well-suited for all-around drilling and screwdriving tasks.
• Two functions: drilling, screwing.
• Compact in size and lightweight.
• Durable tool thanks to protection against overload, overheating, and deep discharge of the battery
• Better protection against dust and moisture thanks to a unique design on the inside and outside of the housing.

Special features of the DTD153

• For a wide range of screwdriving and assembly tasks (M4–M16).
• Get more work done thanks to the brushless motor.
• Extremely compact and very lightweight (1.5 kg).
• Maintenance-free brushless motor with electronic control delivers a constant speed.
• Integrated dual LED lighting for more comfortable work in poorly lit areas.
• Better protection against dust and moisture ingress.

Special features of the DHR242

• Higher productivity thanks to the use of an energy-efficient brushless motor.
• The machine’s ergonomics have been significantly improved, making drilling in ceilings, floors, and walls easy and comfortable.
• Rubber vibration-absorbing suspension ensures uninterrupted power delivery under all conditions.
• Ideal hammer drill for holes up to 14 mm, but can drill up to 24 mm in concrete.
• The chuck, compatible with SDS-PLUS drill bits, has been extended to reduce play.
• Compatible with the DX Dust Extraction System with HEPA filter.
• Durable machine thanks to protection against overload, overheating, and deep discharge of the battery.

Technical Specifications DDF484

• Drilling capacity in wood: 38 mm
• Drilling capacity in metal: 13 mm
• Drill chuck: 1.5–13 mm
• Torque settings: 21
• Motor type: brushless
• Variable speed control (switch): Yes
• Forward and reverse rotation: Yes
• Number of mechanical speed settings: 2
• No-load speed (position 1) 0–500 min⁻¹
• No-load speed (position 2) 0–2000 min⁻¹
• Shaft lock yes
• Built-in lighting: Yes
• Soft grip: Yes
• Torque (soft/hard) 30 / 54 Nm
• Battery protection: Yes
• Drill shaft 1/2 - 20UNF
• Electric brake: Yes
• Weight: 1.8 kg.

Technical specifications DTD153

• Voltage 18 V
• Motor type: BL motor
• Connection/mounting: 1/4 hex
• Variable speed control (switch): Yes
• Forward and reverse rotation: Yes
• Built-in light: Yes
• No-load speed (setting 1) 0–3,400 min⁻¹
• Stroke rate (setting 1) 0–3,600 min⁻¹
• Max. torque (setting 1) 170 Nm
• Metric-threaded screw (M) 4–8 mm
• Wood-threaded screw (length) 22–125 mm
• Soft grip: Yes
• Dimensions LxWxH 126x79x238 mm
• Sound pressure level (LpA) 96 dB(A)
• Sound pressure level (K) 3 dB(A)
• Weight with BL1815N battery: 1.3 kg
• Weight with BL1830 battery: 1.5 kg
• Weight with BL1840 battery: 1.5 kg
• Vibration (K) confirmed up to max. 13 m/s²
• Vibration (K) confirmed up to max. 1.5 m/s²
• Battery protection: Yes
• High-tensile bolt (M): 5–14 mm
• Electric brake: Yes
• Weight with BL1820 battery: 1.3 kg
• Weight with BL1820B battery: 1.3 kg
• Weight with BL1830B battery: 1.5 kg
• Weight with BL1840B battery: 1.5 kg
• Weight with BL1850 battery: 1.5 kg
• Weight with BL1850B battery: 1.5 kg
• Standard bolt (M) 5-16 mm

Technical Specifications DHR242

• Connection/chuck: SDS-PLUS
• Ideal drilling range (concrete): 4–16 mm
• Concrete drill bit diameter: 4–24 mm
• Core bit capacity 35–54 mm
• Core drill capacity: 32–65 mm
• Metal drill bit capacity: 13 mm
• Drilling capacity in wood: 26 mm
• Impact force (EPTA) 2.0 joules
• Number of adjustable chisel positions: 40
• Variable speed control (switch): Yes
• No-load speed (setting 1) 0–950 min⁻¹
• Number of strokes (setting 1) 0–4,700 min⁻¹
• Voltage (volts) 18 V
• Motor type: BL motor
• Dimensions LxWxH 460x90x294 mm
• Number of mechanical revolutions 1 Counterclockwise and clockwise rotation yes
• Battery protection: Yes
• (Safety) slip clutch: Yes
• Electric brake: Yes
• Soft grip: Yes
• Sound pressure level (LpA): 90 dB(A)
• Sound pressure level (K) 3 dB(A)
• Vibration (ah) when hammer drilling in concrete 13.5 m/s²
• Vibration (K) hammer drilling in concrete 1.5 m/s²
• Vibration (ah) when drilling in metal 3.5 m/s²
• Vibration (K) when drilling in metal 1.5 m/s²
• Vibration (ah) chiseling with side handle 10.5 m/s²
• Vibration (K) chiseling with side handle 1.5 m/s²

Scope of delivery

• 1 x DDF484Z 18V LXT Cordless Drill Body
• 1 x DTD153Z 18V LXT Cordless Impact Driver
• 1 x DHR242Z 18V LXT Cordless Hammer Drill
• 1 x 195584-2 LXT DC18RC Fast Charger
• 3 x 197280-8 BL1850B LXT 18 V 5.0 Ah Battery
• 1 x 199563-2 Dust Extraction Adapter with Collection DX06BHR242, DHR242
• 1 x 324219-0 Depth stop for impact drill/drill and combi hammer
• 1 x 346317-0 Long carrying hook for various machines
• 1 x 424474-5 Feed-through sleeve DX01, DX02, DX06, DX07, DX09, DX14, 135905-6, 135906-4
• 1 x 831271-6 Tool bag
• 1 x 784637-8 Screwdriver bit SL-PH2
